Product Details:
|
| Way To Install: | Wall Hung | Outside Material: | Stainless Steel |
|---|---|---|---|
| Heat Power (KW): | 26 | Gas Type: | Natrual Gas/ Liquefied Petroleum Gas |
| Colour: | WHITE | Discription: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Showing: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | 26kw 30kw Wall Mounted Gas Boiler,Wall Mounted Gas Boiler Double Function,Ng 24kw Lpg Combi Boiler |
||
20/24/26/28/32/340kw Double Function Wall Mounted Ng/Lpg Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB26-A(F1) |
|
SPECIFICATIONS |
A26-F1/B26-F1 |
|
RATED INPUT POWER(KW) |
26 |
|
RATED OUTPUT POWER(KW) |
23.5 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

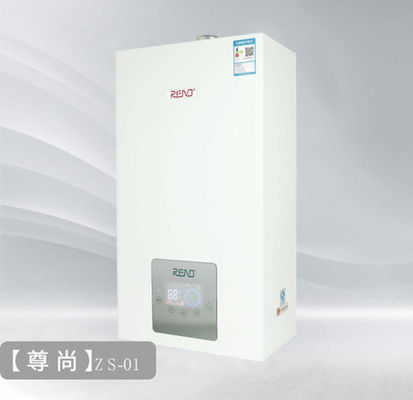

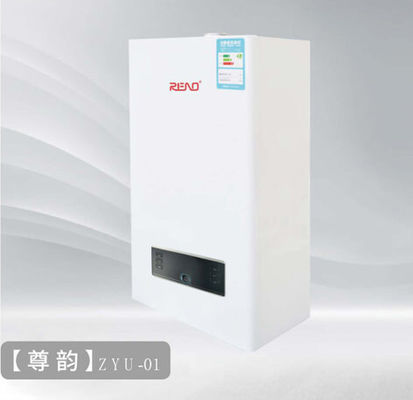

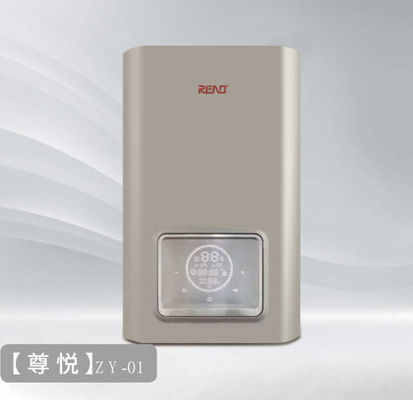

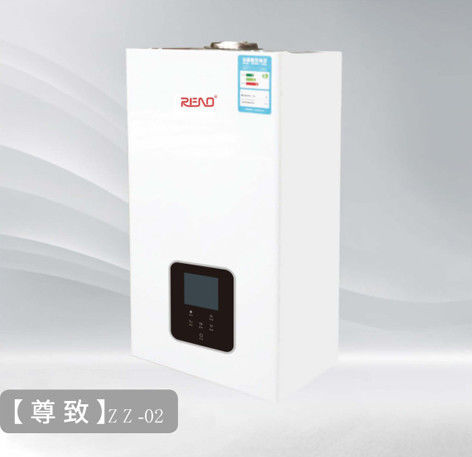

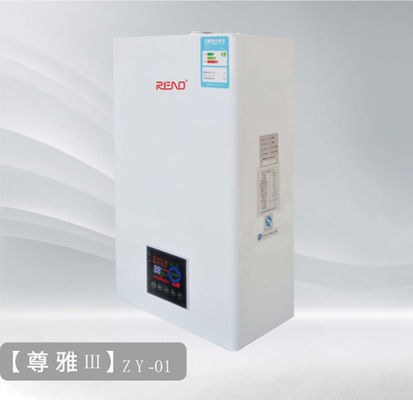

PRODECT DISPLAY
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
The role of the main heat exchanger: the main heat exchanger is the part of heat exchange between the flue gas and the water in the system after the gas combustion. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat exchanger is treated with high efficiency, which ensures the service life of the system.
