Product Details:
|
| Installation: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26 | Gas Type: | NG/LPG |

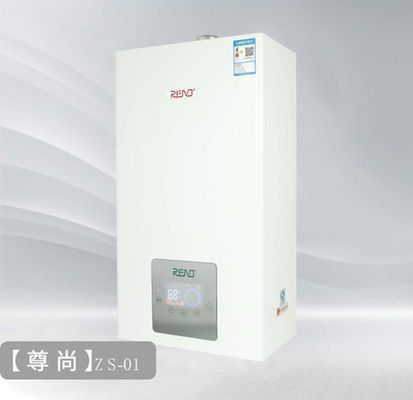

| Color: | WHITE | Product Name: | ZS-01 |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | Heating Wall Hung Gas Boiler,Wall Hung Gas Boiler 26kw,Stainless Steel Lpg Combi Boiler 26kw |
||
Wall Mounted Gas Boiler For Heating And Hot Water Heater
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB26-A(F3) |
|
SPECIFICATIONS |
A26-F3/B26-F3 |
|
RATED INPUT POWER(KW) |
26 |
|
RATED OUTPUT POWER(KW) |
23.5 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

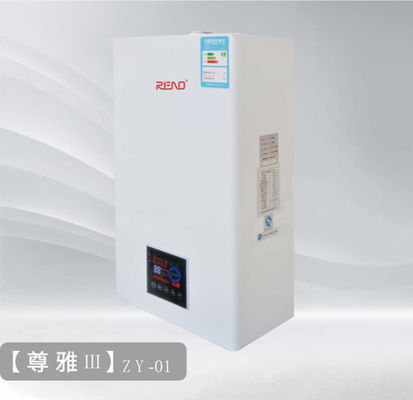

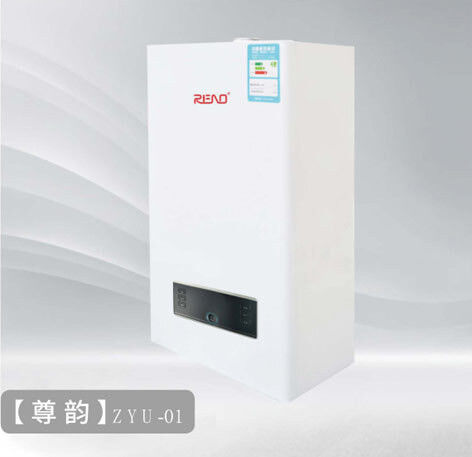

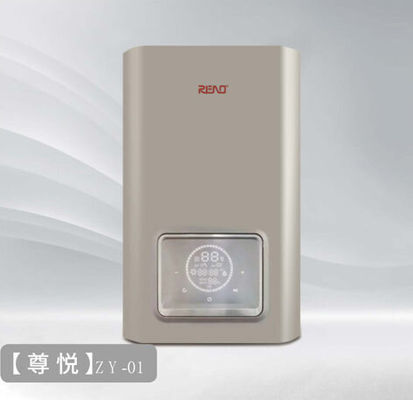

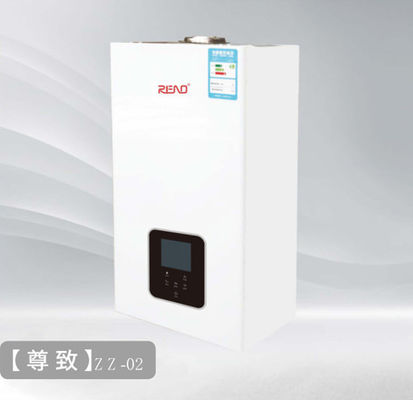

PRODECT DISPLAY
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustionchamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
The role of the main heat exchanger: the main heat exchanger is the part of heat exchange between the flue gas and the water in the system after the gas combustion. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat exchanger is treated with high efficiency, which ensures the service life of the system.
The role of the main board: It is used to control the start and stop of the HVAC equipment, and constant temperature of the system.
