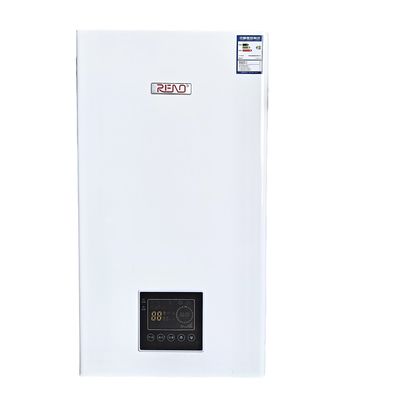

Heating Wall Mounted Condensing Gas Boiler 20kw Electric Combi Boiler For Bath

Wall Hung Condensing Heating Gas Boiler With Stainless Steal Housing And Top International Accessories

GAS WALL HANGING BOILER INSTRUCTIONS

1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate

2. Comfort
Ultra-quiet operation•more comfortable

3. Convenience
Touch control•more precise

4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend

5. After sale
7*24 after-sales service,worry free

8,Ultra-quiet operation and more comfortable

9,Constant temperature and efficient

10,Built-in temperature controller,7 days 24 hours timing editing function

11,Three-speed self-exhaust pumps,effectively improve the system efficiency

12,Imported chip,microcomputer control

13, 6 pipes brazing combined heat ex-changer

14,Digital display,more intuitive

15,Excellent instant heat type mode

TECHNICAL DATA OF GAS WALL HANGING  BOILER

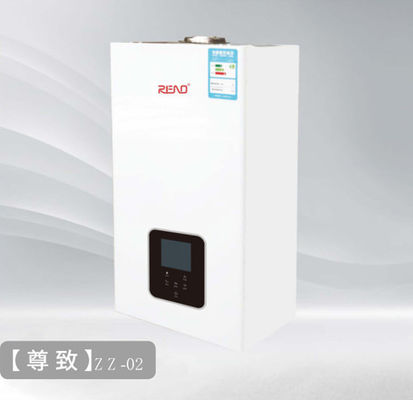

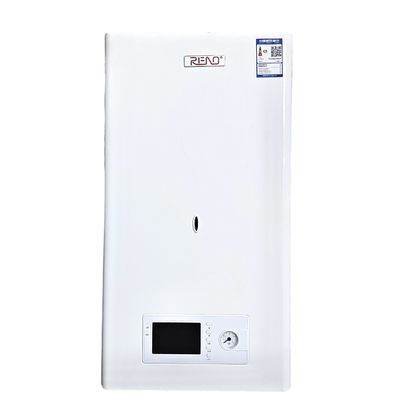

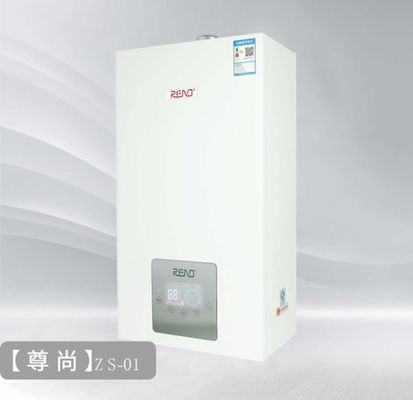

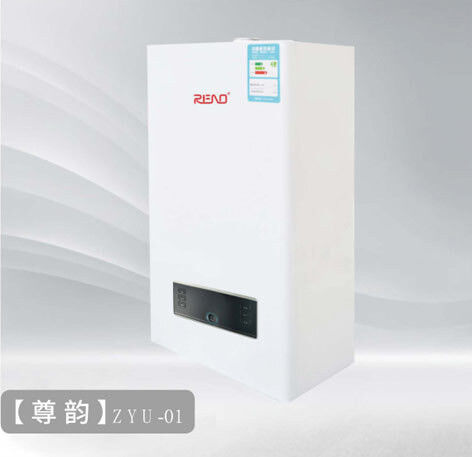

PRODECT DISPLAY


Function of temperature sensor: The temperature sensor of gas wall hanging furnace is divided into heating and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging furnace is more convenient and accurate.
The function of the gas valve is to ensure the normal combustion of the boiler. In a certain range of gas pressure, make the boiler stable combustion and can automatically adjust the gas supply according to the requirements of the boiler heat output, in order to realize the automatic shutdown of the boiler and gas proportion regulation.

The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.

The role of the main heat exchanger: the main heat exchanger is the part of heat exchange between the flue gas and the water in the system after the gas combustion. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat exchanger is treated with high efficiency, which ensures the service life of the system.

The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors​
