Product Details:
|
| Shell Matreial: | Stainless Steel Or Metal | Installation: | Mounted On The Wall |
|---|---|---|---|
| Heat Power (KW): | 20-40kw | Gas Style: | NG/LPG |
| Outside Color: | WHITE OPTIONAL | Description: | USE NG/LPG WALL HUNG BOILER |
| Gas Pressure(pa): | NG2000/LPG2800pa | Displaying: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | Household 20kw Gas Wall Hung Boiler,Gas Wall Hung Boiler 40kw,40kw Wall Mounted Lpg Combi Boiler |
||
MANUFACTURE HOT SELLING NEW DESIGN HOUSEHOLD 20-40KW WALL MOUNTED PLATE CHANGE OR CASING TYPE GAS BOILER
Safety features:
-Triple over-heat protection.
-Flameout protection.
-Reignite function.
-Defer ignition function.
-Anti-freezing function.
-Anti-lock function for pump.
-Overload protection for pump.
-Lightning strike protection.
-Overload protection for control system.
-Safety release function.
-Automatic circulation function of pump.
-Self-diagnostic function.
-Safety lock function.
-Automatic by-pass valve
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
| SPECIFICATIONS | A20-40-F3/B20-40-F3 |
| RATED INPUT POWER(KW) | 32-40 OPTIONAL |
| RATED OUTPUT POWER(KW) | 18-36 |
| THERMAL EFFICIENCY(%) | ≥90 |
| RATED VOLTAGE FREQUENCY(V/Hz/W) | 220/230/50 |
| GAS TYPE | NG/LPG |
| GAS PRESSURE(Pa) | 2000/2800 |
| TEMP.RANGE OF HEATING WATER(℃) | DHW:30-60 HEATING HOT WATER:30-80 |
| △T=30℃ HOT WATER SUPPLY(KG/MIN) | 8-16 |
| APPLICATIVE WATER PRESSURE(MPA) | 0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Energy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free

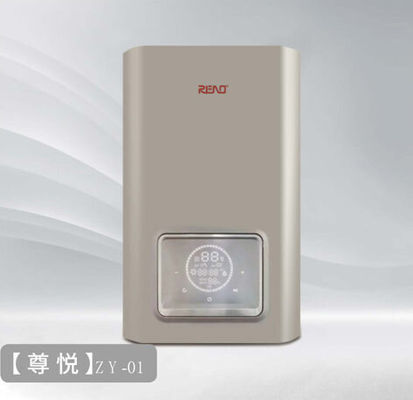

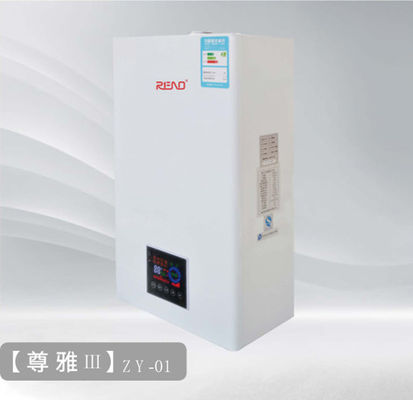

PRODECT DISPLAY
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
