Product Details:
|
| Displaying: | LED Displayer Optional | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20kw | Gas Type: | NG/LPG |
| Colour: | WHITE Optional | Product Name: | Wall Mount Gas Boiler |
| Heat Efficiency: | At Least 90% | Gas Pressure: | 2000pa/2800pa |
| Installation: | Wall Mounted | ||
| High Light: | Large Heat Exchange Gas Wall Hung Boiler,Fast Heat Transfer Lpg Water Boiler 20kw,Ng Lpg Water Boiler 20kw |
||
Large Heat Exchange Area Fast Heat Transfer Ng Or Lpg Gas Dual Function Boiler
technical characteristics:
1,Low noise operation, quick installation, easy operation.
2,Sanitary hot water low water pressure start function (2 L/min).
3,The temperature of heating water and sanitary hot water is precisely set by the temperature adjustment button.
4,Proportional continuous flame adjustment, according to the change of heat load demand automatically adjust the size of the flame, to achieve automatic control of heating water and sanitary hot water temperature.
5,With digital display, it can digitally display the temperature of heating system water output and bath water temperature. When the system fails, it can automatically detect and display the fault code to facilitate maintenance and find the cause of the fault.
6,Micro-negative pressure closed combustion, does not consume indoor air, can be installed in any indoor location.
7,Electrical ion flame monitoring device to achieve flame out protection.
8,The heating and bathing state can be switched freely.
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-A(F6) |
| SPECIFICATIONS | A20-F6/B20-F6 |
| RATED INPUT POWER(KW) | 20kw |
| RATED OUTPUT POWER(KW) | 18 |
| THERMAL EFFICIENCY(%) | ≥90 |
| RATED VOLTAGE FREQUENCY(V/Hz) | 220/230/50 |
| GAS TYPE | NG/LPG |
| GAS PRESSURE(Pa) | 2000/2800pa |
| TEMP.RANGE OF HEATING WATER(℃) | DHW:30-60 HEATING HOT WATER:30-80 |
| △T=30k HOT WATER SUPPLY(KG/MIN) |
8
|
| APPLICATIVE WATER PRESSURE(MPA) | 0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Energy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free

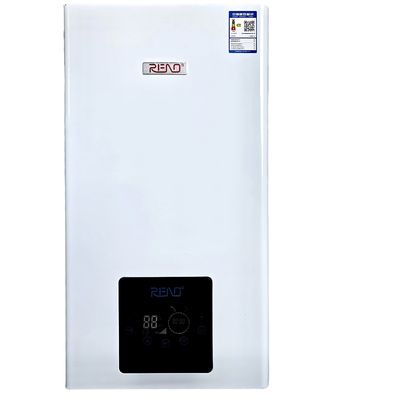

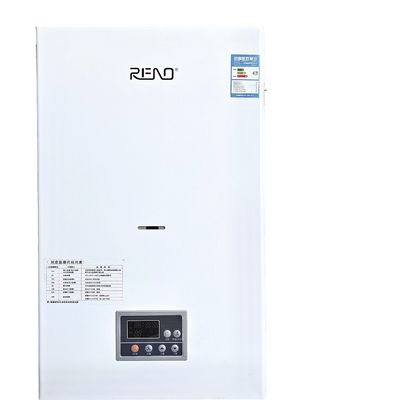

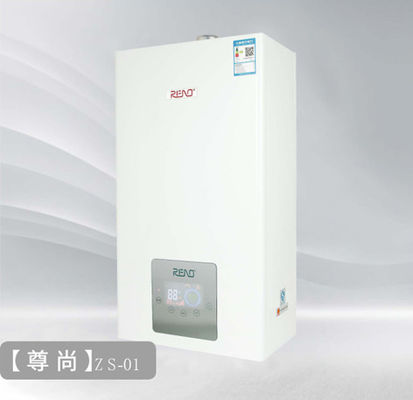

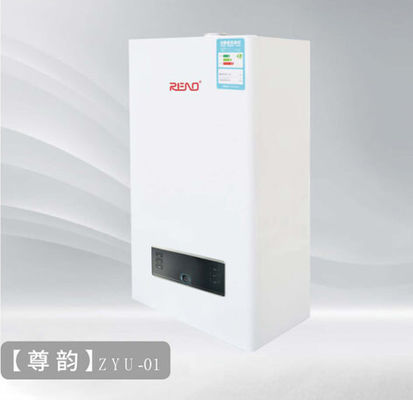

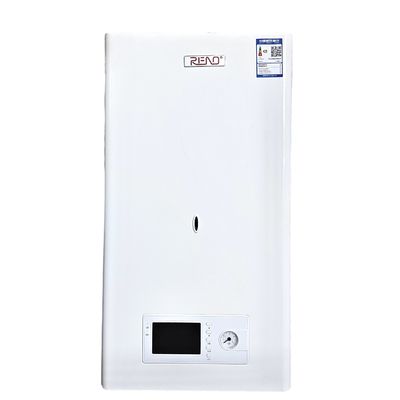

PRODECT DISPLAY
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
