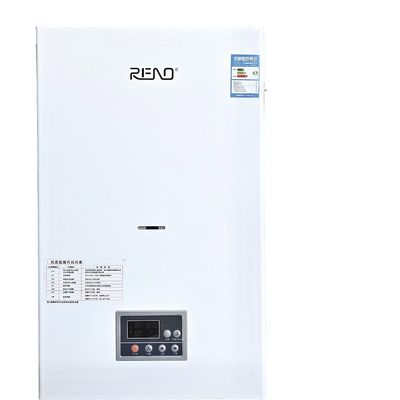

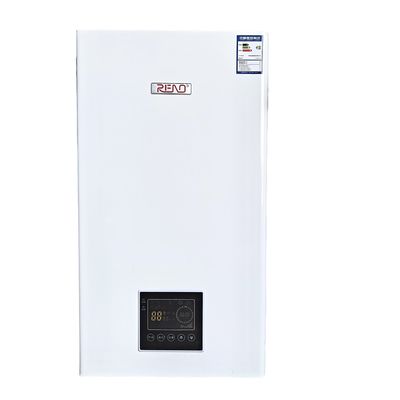

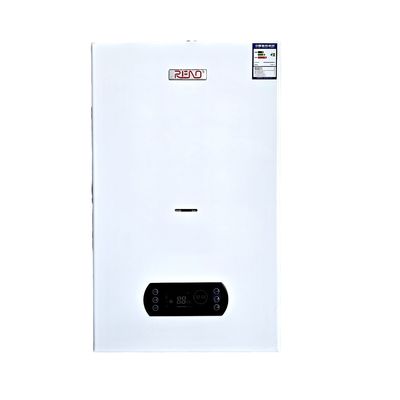

Product Details:
|
| How To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 32-42kw | Gas Style: | NG/LPG |
| Color Shows: | White | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥108% | ||
| Highlight: | NG LPG Wall Mounted Gas Boiler,Wall Mounted Gas Boiler 32kw,32kw Wall Hanging Gas Furnace |
||
WALL HUNG GAS HOT WATER BOILER 21 KINDS OF SECURITY PROTECTION AND USE IMPORTED WILO OR GRUNDFOS BRAN PUMPS
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
8,Built-in temperature controller,7 days 24 hours timing editing function
9,Three-speed self-exhaust pumps,effectively improve the system efficiency
10,Imported chip,microcomputer control
11, 6 pipes brazing combined heat ex-changer
12,Digital display,more intuitive
13,Excellent instant heat type mode
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | LLGBQ32-42-JK |
|
SPECIFICATIONS |
Q32-42-JK |
|
RATED INPUT POWER(KW) |
32-42kw |
|
RATED OUTPUT POWER(KW) |
34.5-45.3kw |
|
HEAT EFFICIENCY(%) |
≥108% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13.6-17.5 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 45-45kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

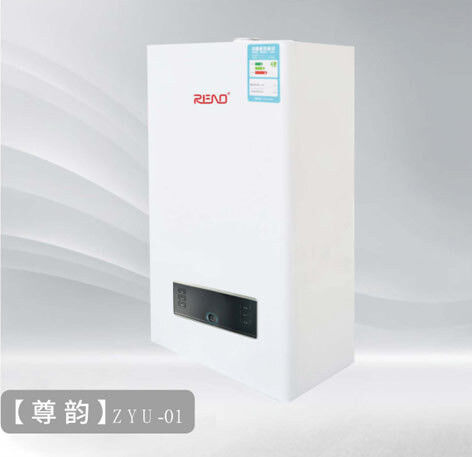

PRODECT DISPLAY
The role of the main heat exchanger: the main heat exchanger is the part of heat exchange between the flue gas and the water in the system after the gas combustion. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat exchanger is treated with high efficiency, which ensures the service life of the system.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
