Product Details:
|
| Way To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20-24-32-42kw | Gas Style: | NG/LPG |
| Color Shows: | White | Product Name: | Wall Hung Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displays: | LED Displayer Optional |
| Heat Efficiency(%): | ≥108% | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | ||
| Highlight: | Wall Hung Gas Hot Water Heater,Gas Hot Water Heater Touch Screen,Gas Combi Boilers 42kw |
||
Wall Hung Gas Hot Water Heater Touch Screen Operation And Use Imported Wilo Or Grundfos Bran Pumps
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
6,A flexible,easy installation,cover an area of a small area
7,Fault self-diagnosis function,convenient maintenance
8,Thermal efficiency can reach 94%,low carbon environmental protection
9,Unique intelligent fault operation, improve the operation of the product
10,Unique energy-saving design,save electricity above 30%
11,The main parts adopt the world first-class brand,product performance is more outstanding
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | LLGBQ20-24-32-42-JK |
|
SPECIFICATIONS |
Q20-24-32-42-JK |
|
RATED INPUT POWER(KW) |
20-24-32-42kw |
|
RATED OUTPUT POWER(KW) |
21.6-25.9-34.5-45.3kw |
|
HEAT EFFICIENCY(%) |
≥108% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-9.4-13.6-17.5 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 40-40-45-45kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

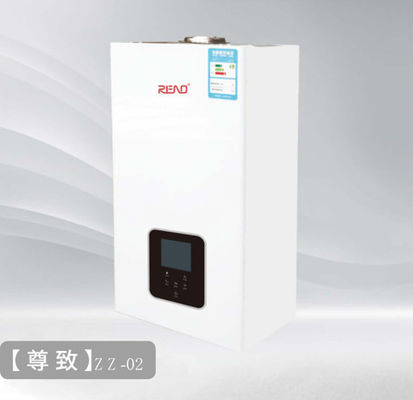

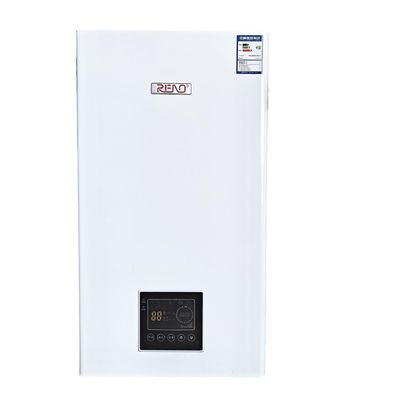

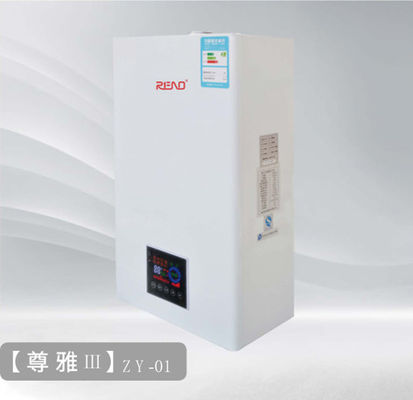

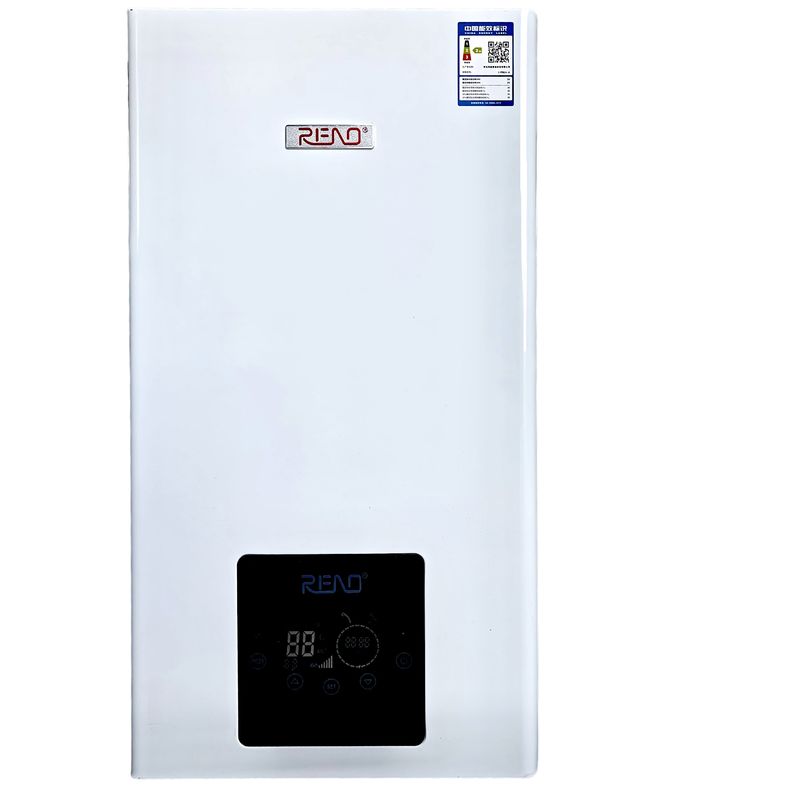

PRODECT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging furnace is divided into heating and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging
furnace is more convenient and accurae
