Product Details:
|
| Power (w): | 24/32/42KW | Installation: | Wall Mounted |
|---|---|---|---|
| Product Name: | Wall Mount Gas Boiler | Gas Type: | NG/LPG |
| Case Material: | Stainless Steel | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥108 | Color: | Black Or Printed |
| Gas Pressure(pa): | 2000/2800 | ||
| Highlight: | Heating Bath Wall Hung Condensing Boiler,Wall Hung Condensing Boiler 24kw,Wall Mount Gas Boiler 32kw |
||

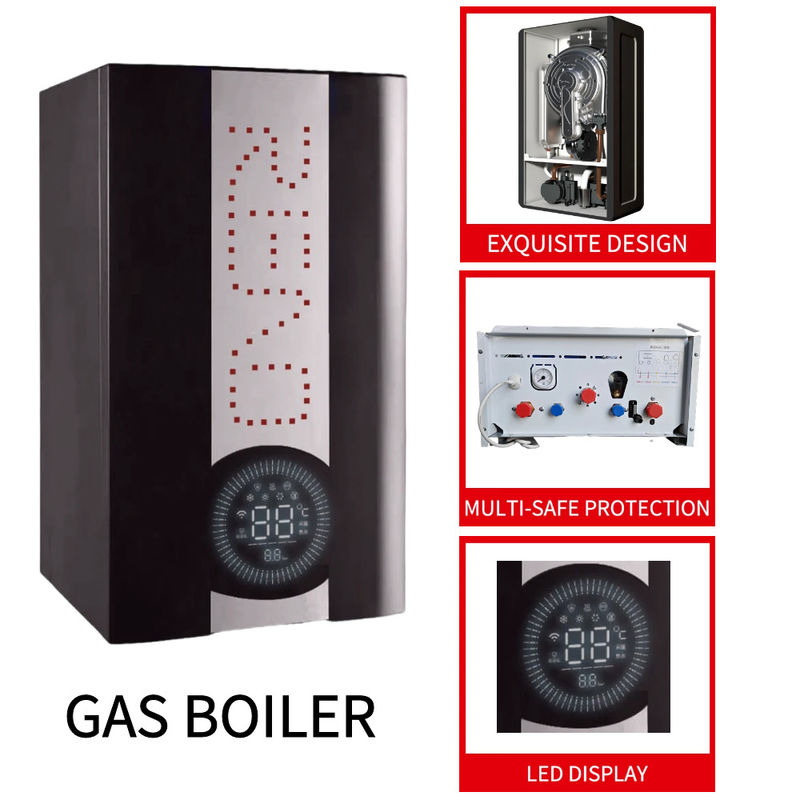

Gas Condensing 24/32/42Kw Wall Mounted Boiler Black Case Stainless Steel Hot Water Heating And Bath Dual Function
Product features:
1) Provide home heating and domestic hot water
2) Hot water priority
3) Compulsive balanced draft system
4)Water pump with auto air vent valve
5) Sealed combustion room
6) Anti-dry burn protection
7) 95'C overheat protection
8)Anti-freeze protection
9) 3.0bar over-pressure protection
10) Flame-out protection
11) Fault code display
12) With by-pass pipe/valve
13) Gas valve shut down automatically when detected anomaly
14) Water pump anti-stuck protection
15) Highest temperature: heating system: 30 to 80°C DHW system: 30 to 55°C
16) Heat efficiency: 90%
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Introduction of Condensing gas wall hanging furnace:
Condensing technology is a scientific and technological means to improve thermal efficiency. By using condensing technology, the thermal efficiency of gas wall hanging furnace is greatly improved, which also means the reduction of energy consumption; More importantly, an energy saving and environmental protection wall hanging furnace plays an irreplaceable role in improving users' living environment and quality of life. The biggest feature of condensing type wall hanging furnace is to achieve excellent energy saving effect relying on condensing technology.

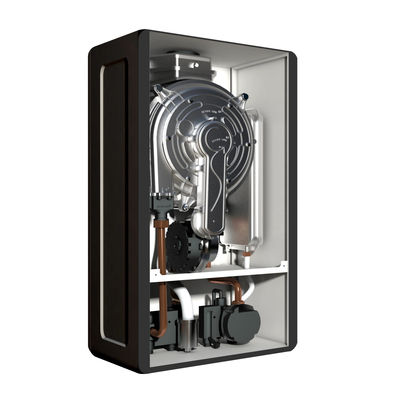

Function description of some major accessories:
The role of the main board: It is used to control the start and stop of the HVAC equipment, and constant temperature of the system.
Product Main Technical Parameter Table
