Product Details:
|
| Shell Material: | Stainless Steel | Volume: | 16/24L |
|---|---|---|---|
| Gas Style: | NG/LPG | Way To Install: | Wall Mounted |
| Color Shows: | OPTION | Product Name: | Wall Hung Gas HEATER |
| High Light: | Wall Hung Gas Hot Water Heaters 24L,Wall Mounted Gas Boiler 24L,LPG Continuous Wall Mounted Gas Boiler |
||

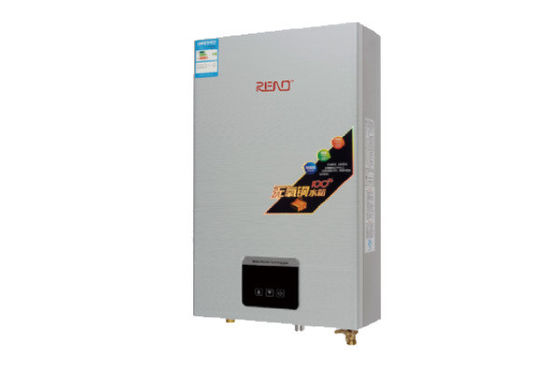

Wall Hung Gas Instant Hot Water Heater Stainless Steel Shell
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL MOUNTED HEATER
| MODEL No. | JSQ32/48-L |
|
SPECIFICATIONS |
Household instant heat water |
|
RATED INPUT POWER(KW) |
32/48Kw |
|
RATED HOT WATER CAPACITY |
16/24L |
|
CONTROL MODE |
TURNING ON THE WATERE TAP TO USE |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
16/24L |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.03-0.8MPa |
| DIMENSION(HIGH*WIDE*THICK) | SEE OUTER PACKING |
| WEIGHT(KG) | NET WEIGHT 12.5KG OR MORE |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | ∅60mm-90mm |
Wall-hung gas boilers in our living spaces deliver heat and home comfort. These can be condensing boilers or combi-boilers: we can provide the right pressure and temperature measuring instruments for either of these variants. Our portfolio includes measuring instruments for monitoring and controlling hot water and industrial water circuits. Although mechanical pressure switches are used to perform the pressure-dependent opening and closing of circuits, a current-independent on-site display and an electronic output signal can both be implemented with mechatronic pressure gauges. Depending on your needs, you can choose from various different output signals.
You create a pressure display independent of measuring points by using a pressure measuring instrument with capillary. Specifically for applications calling for frequent bending of capillaries, we offer the alternative to the familiar copper capillaries of ultra-flexible plastic capillaries. To measure the temperature of hot water or industrial water, expansion thermometers or thermomanometers can be used.

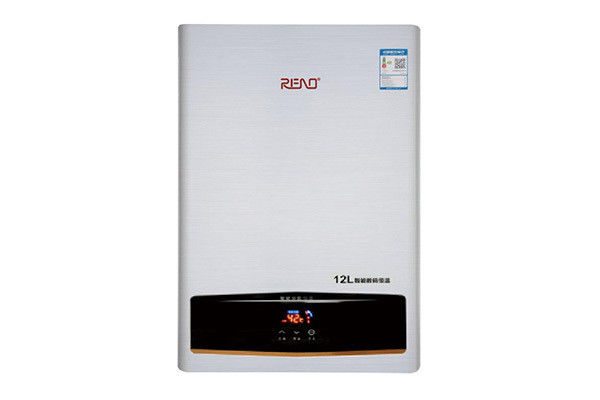

PRODECT DISPLAY
How many liters of gas water heater is more appropriate ?
1. Usually, a family of 3 or 4 people can choose a 10-liter gas water heater. If the family wants to share a water heater for the kitchen and bathroom, it is recommended that people choose a 12-liter water heater.
2, if there are two bathrooms at home have a kitchen, but we just want to share a water heater, then it is recommended that two bathrooms, a kitchen choose 16 liters of water heater, this way can be used in three places at the same time have no relationship.
3, if the home is relatively large, equivalent to a large flat floor and villa, there are four bathrooms, then you can choose 24 liters of gas water heater.
