Product Details:
|
| How To Install: | Wall Hung | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20 | Gas Style: | NG/LPG |
| Color Shows: | WHITE | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | LPG Gas Wall Hung Boiler,Heating Bathing Copper Exchanger Boiler,Dual Functions Copper Exchanger Boiler |
||
Gas Wall Hung Heating And Bathing Dual Functions Copper Exchanger Boiler
GAS WALL HUNG BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB20 |
|
SPECIFICATIONS |
A20-M1 |
|
RATED INPUT POWER(KW) |
20kw |
|
RATED OUTPUT POWER(KW) |
21.6kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
8 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*245 |
| WEIGHT(KG) | 30kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

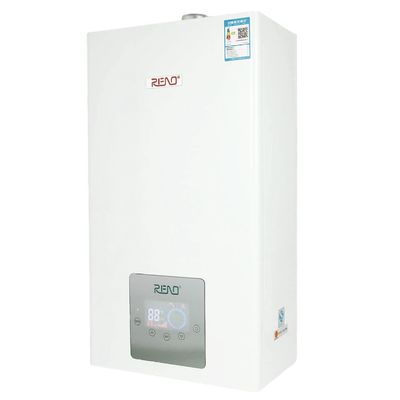

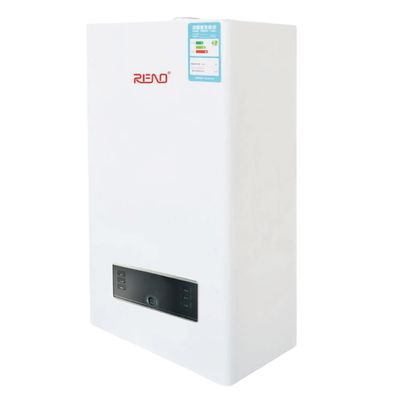

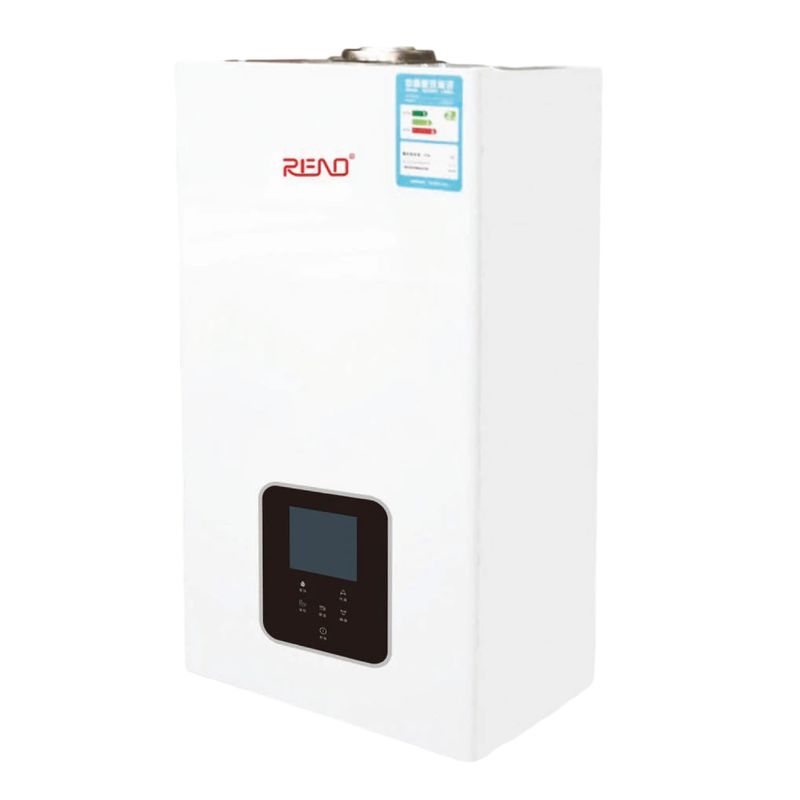

PRODUCT DISPLAY
Simple working principle(The premise is electricity on, gas on, water on.)
When the water flow sensor senses the water flow, a signal is transmitted to our main board, which gives instructions for the fan to turn. The air produced by the rotation of the fan flows back to the air pressure switch, and the signal is transmitted to the main board, which gives instructions for the ignition needle and solenoid valve to start heating, and the gas is burned to produce exhaust gas. The exhaust gas produced by combustion is discharged through the fan. The resulting hot water flows out of the heat exchanger.
