Product Details:
|
| Heat Efficiency(%): | ≥90 | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20 | Displaying: | LED Displayer Optional |
| Gas Style: | NG/LPG | Color Shows: | WHITE |
| How To Install: | Wall Mounted | Product Name: | Wall Mounted Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | ||
| High Light: | Wall Mounted NG Gas Boiler,Heating NG Gas Boiler |
||
Gas Wall Mounted For Heating And Bathing Copper Plate Exchange Style Boiler With Copper Heat Exchanger
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfortable
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB20-B{F1) |
|
SPECIFICATIONS |
A20-F1 |
|
RATED INPUT POWER(KW) |
20kw |
|
RATED OUTPUT POWER(KW) |
18kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
8Kg |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*245 |
| WEIGHT(KG) | 33kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

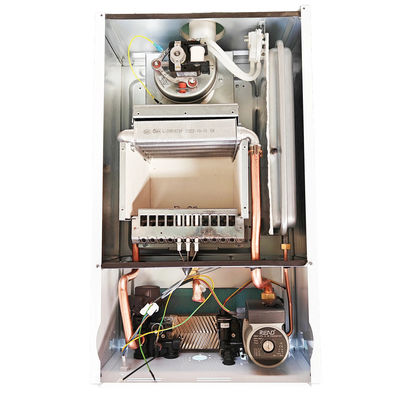

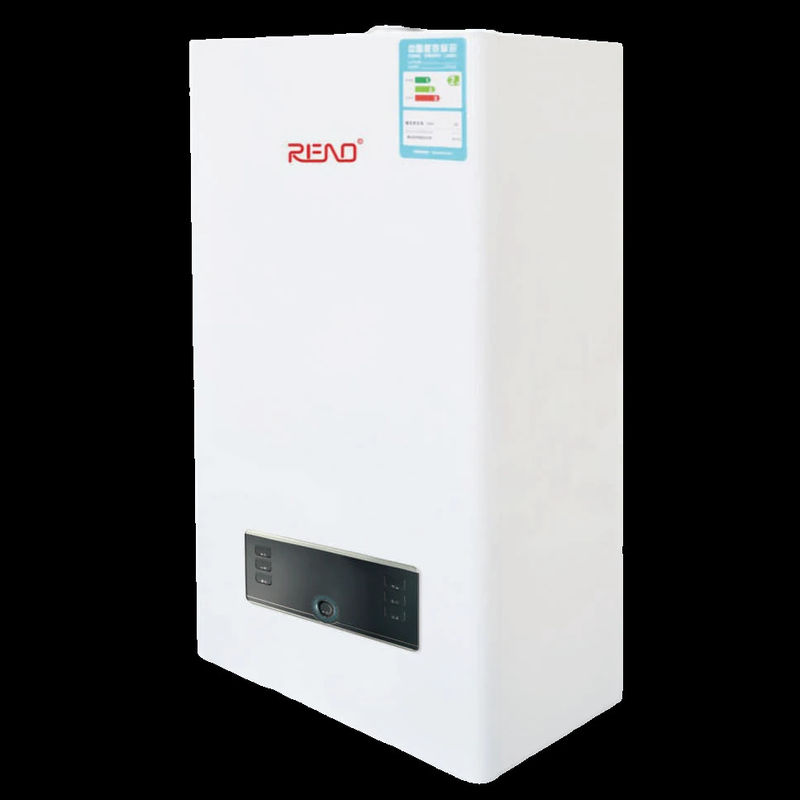

PRODUCT DISPLAY
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
Working principle of gas wall hanging furnace
The working principle of gas wall hanging furnace is that natural gas is burned in the wall hanging furnace, the hot water in the wall hanging furnace is heated to a certain temperature, and the water in the wall hanging furnace is transported to the heating equipment. At the same time, the wall hanging furnace can also heat domestic hot water when using natural gas combustion. It can be used for heating and bathing.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
