Product Details:
|
| Gas Pressure(pa): | 2000/2800 | Heat Efficiency(%): | ≥90 |
|---|---|---|---|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
| Power (KW): | 32 | Displaying: | LED Displayer Optional |
| Gas Style: | NG/LPG | Color Shows: | WHITE |
| Product Name: | Wall Mounted Gas Boiler | ||
| High Light: | Plate Exchanger Style Gas Furnace,32kw Wall Hung Gas Furnace,LPG Gas Furnace |
||

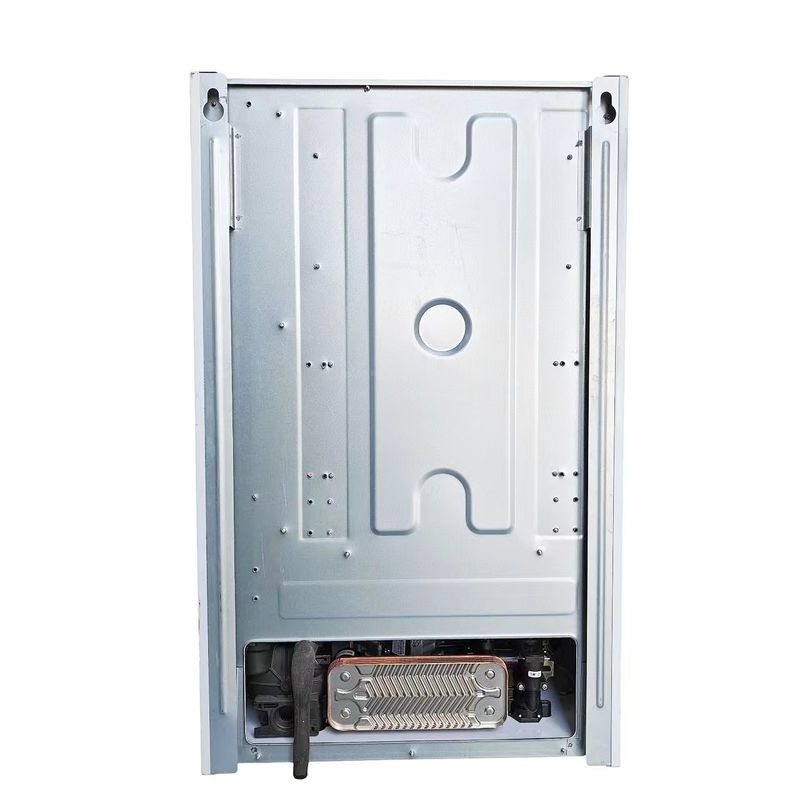

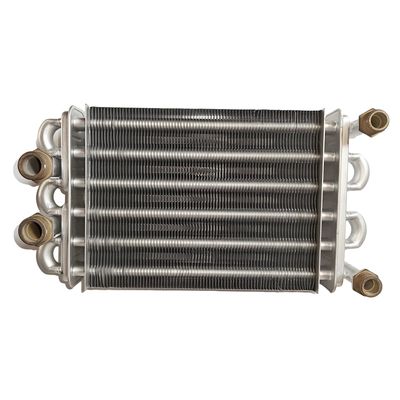

Gas Wall Hung Copper Heat Exchanger Plate Exchange Style Furnace With Copper Heat Exchanger
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfortable
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB32-A{F1) |
|
SPECIFICATIONS |
B32-F1 |
|
RATED INPUT POWER(KW) |
32kw |
|
RATED OUTPUT POWER(KW) |
28.8kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
13Kg |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*460*325 |
| WEIGHT(KG) | 38kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODUCT DISPLAY
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of
human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
Working principle of gas wall hanging furnace
The working principle of gas wall hanging furnace is that natural gas is burned in the wall hanging furnace, the hot water in the wall hanging
furnace is heated to a certain temperature, and the water in the wall hanging furnace is transported to the heating equipment. At the same time,
the wall hanging furnace can also heat domestic hot water when using natural gas combustion. It can be used for heating and bathing.
