Product Details:
|
Gas Style: | NG/LPG | How To Install: | Wall Mounted |
---|---|---|---|
Housing Material: | Stainless Steel | Power (KW): | 24 |
Product Name: | Wall Mounted Gas Boiler | Displaying: | LED Displayer Optional |
Heat Efficiency(%): | ≥90 | Gas Pressure(pa): | 2000/2800 |
Color Shows: | WHITE | ||
High Light: | Heating Bathing Dual Functions Boiler,White Shell Gas Boiler,Casing Style Gas Boiler 24Kw |

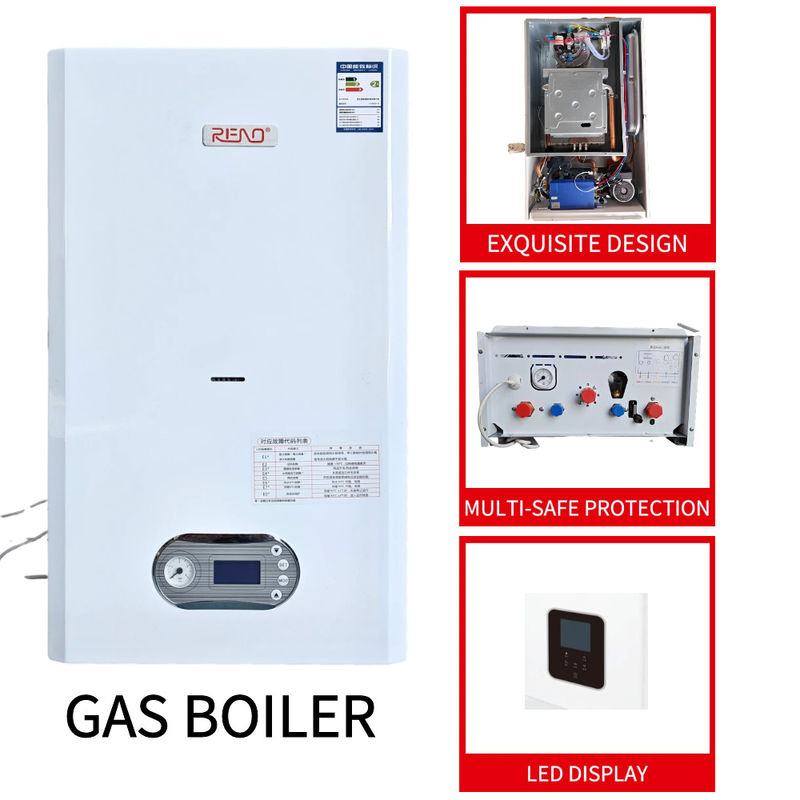

24 Kw Gas Wall Mounted Casing Style White Shell Heating And Bathing Dual Functions boiler
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfortable
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
MODEL No. | L1PB24-B{F1) |
SPECIFICATIONS |
A24-F1 |
RATED INPUT POWER(KW) |
24kw |
RATED OUTPUT POWER(KW) |
21.6kw |
HEAT EFFICIENCY(%) |
≥90% |
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
GAS TYPE |
NG/LPG |
GAS PRESSURE(Pa) |
2000/2800Pa |
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
9.5Kg |
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
DIMENSION(HIGH*WIDE*THICK) | 740*410*245 |
WEIGHT(KG) | 33kg |
DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

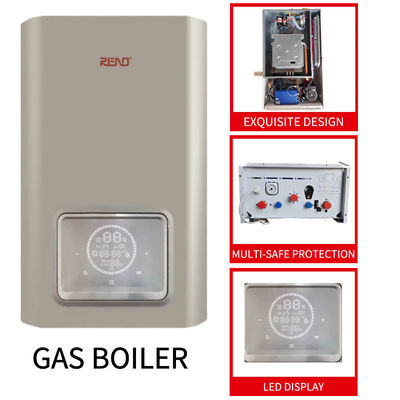

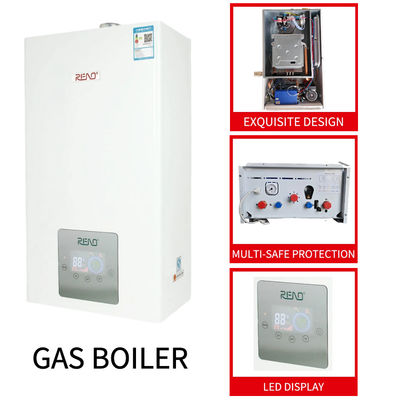

PRODUCT DISPLAY
According to the size of the hot water capacity, the wall hanging boiler can be divided into the following three types
1. The hot water capacity of low-power wall hanging boiler is less than 6 liters, which is suitable for small household use, such as one room, one room, two rooms, etc.
2. The hot water capacity of medium power type wall hanging boiler is between 6 liters and 12 liters, which is suitable for medium household use, such as two rooms and one hall, two rooms and two halls.
3. The hot water capacity of high-power wall hanging boiler is more than 12 liters, which is suitable for large household use, such as three rooms and one hall, three rooms and two halls.
ABOUT US
Company profile
Qingdao Hiounce HVAC Equipment Co., Ltd. is located in the beautiful coastal city of Qingdao. The company is a high-tech enterprise which has a gas heating hot water boiler, condensing gas boiler, gas module boiler, air energy heat pump, air energy fan, fuel oil (gas) boiler, electric boiler, wall hanging boiler, electric wall hanging heater, stove, range hood, water heater, biomass particle heater as the leading, and set design, research and development, production, sales in one.
The company has more than 100 employees. Company headquarters have the general office, administration and human resources department, finance department, market management department, business department, office (provincial), import and export department, purchasing department, technology department, engineering department, after-sales service department and other 11 functional departments, through the perfect sales and service network, will provide customers the safe, stable, energy saving, environmental protection products .
The company covers an area of 13,600 square meters, plant area of 7,500 square meters, more than 100 sets of various production and processing equipment. The company has an annual output of 200,000 sets of wall hanging boiler production line and equipped with advanced testing equipment, according to the industry's high standards of the construction of research and development laboratory, product life laboratory, incoming materials laboratory and finished products laboratory.
The booming Chinese wall - hung boiler market provides great development space for the growth of Hiounce Company. The company gathers many elites in the industry, adhering to the concept of "innovation, quality, safety, energy saving, environmental protection", timely understanding of customer‘s needs and changes, combined with the latest thermal energy technology to develop suitable for the market of high-tech thermal energy technology products, in strict accordance with the European standards for manufacturing and testing, to meet the growing needs of customers. It is committed to becoming a professional company providing integrated services including products, technical support, supporting and customer service, and an international manufacturing base for boilers, heat pumps and gas appliances.
