Product Details:
|
| Installation: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (Kw): | 24-32 | Gas Type: | NG/LPG |
| Color: | White | Product Name: | Wall Mounted Gas Boiler |
| Gas Pressure(Pa)(pa): | 2000-2800 | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥108 | ||
| High Light: | Wall Mount Condensing Combi Boiler,32KW Condensing Combi Boiler,Wall Mounting NG Gas Boiler |
||
24-32KW Wall Mount Gas Boiler Energy Saving Wall Hung Condensing Combi Boiler
GAS WALL HANGING FURNACE INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | LLGBQ24-32-GK |
|
SPECIFICATIONS |
Q20-24-GK |
|
RATED INPUT POWER(KW) |
24-32 |
|
RATED OUTPUT POWER(KW) |
25.9-34.5 |
|
THERMAL EFFICIENCY(%) |
≥108 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
9.4-13.6 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*245-315,740*460*325 |
| WEIGHT(KG) | 40-45 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

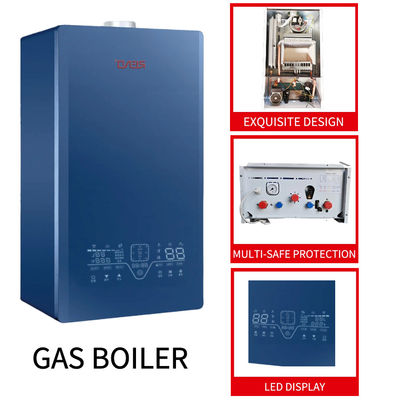

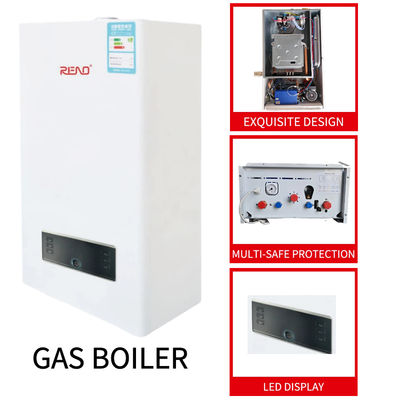

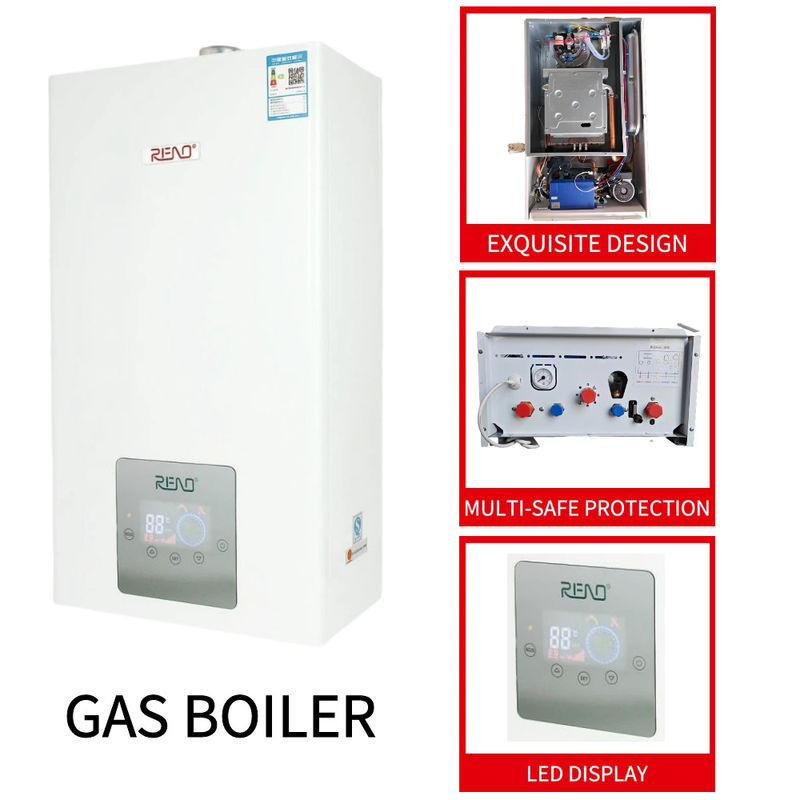

PRODUCT DISPLAY
The role of the main heat exchanger: the main heat exchanger is the part of heat exchange between the flue gas and the water in the system after the gas combustion. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat exchanger is treated with high efficiency, which ensures the service life of the system.
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
