Product Details:
|
| Install: | HUNG On The Wall | Appearance Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 32-40KW OPTIONAL | Gas Style: | NG/LPG |
| Surface Color: | WHITE OPTIONAL | Name: | USE NG/LPG WALL HUNG BOILER OR HEATER |
| Gas Pressure(pa): | NG2000pa/LPG2800pa | Showing: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Wall Mount Gas Boiler 40kw,Domestic Gas Central Heating Boilers,Domestic Wall Mount Gas Boiler |
||
Hotel Wall Mount Gas Boiler 32-40kw Domestic Gas Central Heating Boilers
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB32-40-A(C3) |
|
SPECIFICATIONS |
A32-40-TG1/BH1 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
25.2-28.8 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/145 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
15-18L |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 32.4-40.5 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

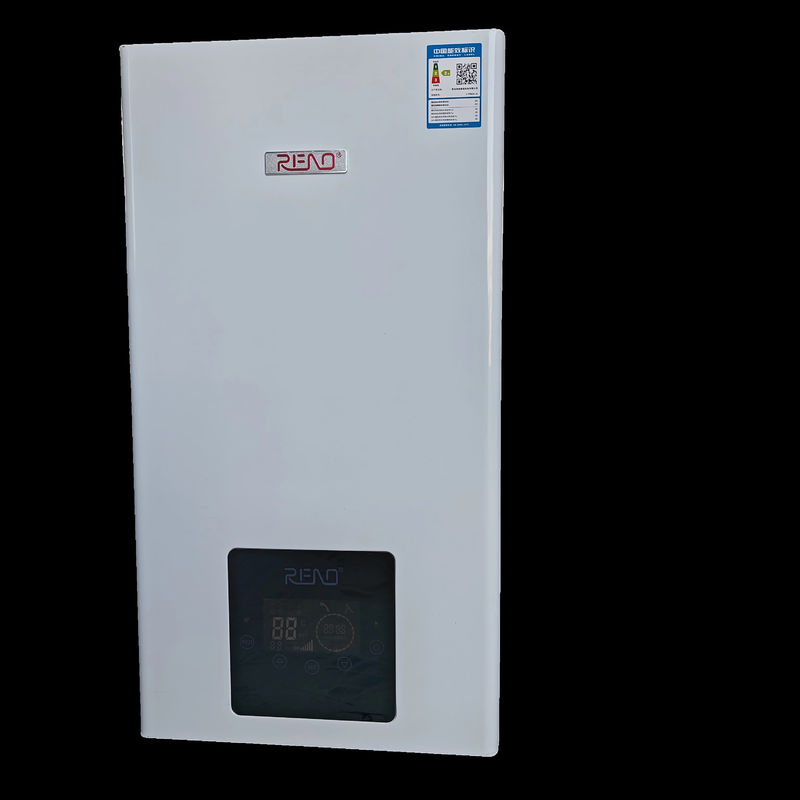

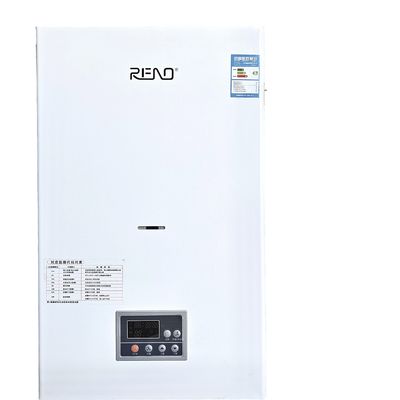

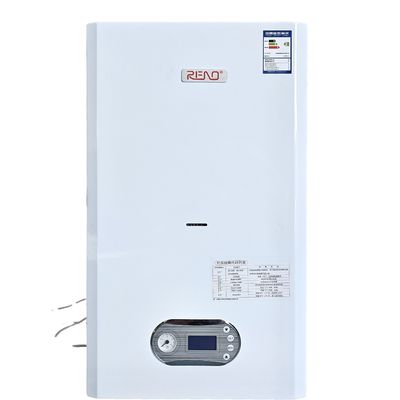

PRODUCT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors
