Product Details:
|
| Install: | HUNG On The Wall | Heat Power (KW): | 32-40KW OPTIONAL |
|---|---|---|---|
| Gas Style: | NG/LPG | Surface Color: | WHITE OPTIONAL |
| Appearance Material: | Stainless Steel Or Metal | Name: | USE NG/LPG WALL HUNG BOILER OR HEATER |
| Gas Pressure(pa): | NG2000pa/LPG2800pa | Showing: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | 40kw Domestic Gas Combi Boilers,Hotel Domestic Gas Combi Boilers,Bathing Wall Mount Gas Boiler |
||

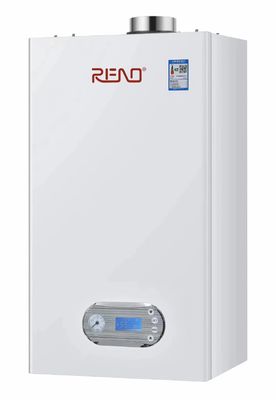

Hotel Wall Mount Gas Boiler 32-40kw Domestic Gas Central Heating And Bathing Combi Boilers
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB32-40-A(C3) |
|
SPECIFICATIONS |
A32-40-TG1/BH1 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
25.2-28.8 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/145 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
15-18L |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 32.4-40.5 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

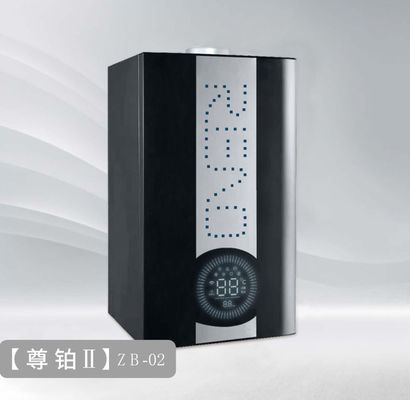

PRODUCT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
The role of the main heat changer: the main heat changer is the part of heat exchange between the flue gas which is produced by gas combustion and the water in the system. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat changer has been treated with efficient anti-corrosion , which ensures the service life of the system.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
The role of the air pressure switch: The air pressure switch is mainly responsible for the safety protection in the wall mounted furnace system. It is divided into two chambers by a valve inside, and the two chambers on both sides of the valve are respectively connected with two pressure measuring tubes. By comparing the pressure obtained by the pressure measuring tube, it can detect whether the smoke exhaust system is normal.
