Product Details:
|
| Installation: | Wall Mounted | Power (KW): | 20-40kw |
|---|---|---|---|
| Gas Type: | NG/LPG | Color: | WHITE |
| Housing Material: | Stainless Steel | Product Name: | Wall Mount Gas Boiler |
| Display: | LED Displayer Optional | Heat Efficiency: | At Least 90% |
| Gas Pressure: | 2000pa/2800pa | ||
| High Light: | Apartment Gas Wall Hung Boiler,Lpg Gas Hot Water Boiler,Bathing Gas Wall Hung Boiler |
||
Apartment Gas Wall Hung Boiler Heating And Bathing Lpg Gas Hot Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F1) |
|
SPECIFICATIONS |
A20-40-F1/B20-40-F1 |
|
RATED INPUT POWER(KW) |
20-40kw |
|
RATED OUTPUT POWER(KW) |
28.8 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13
|
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 38 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

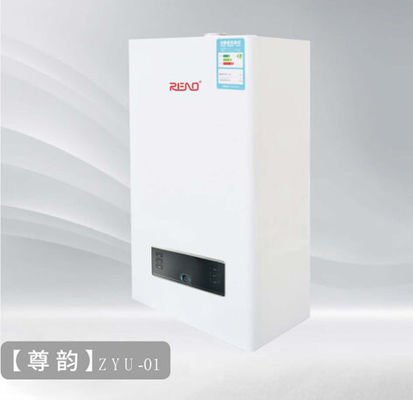

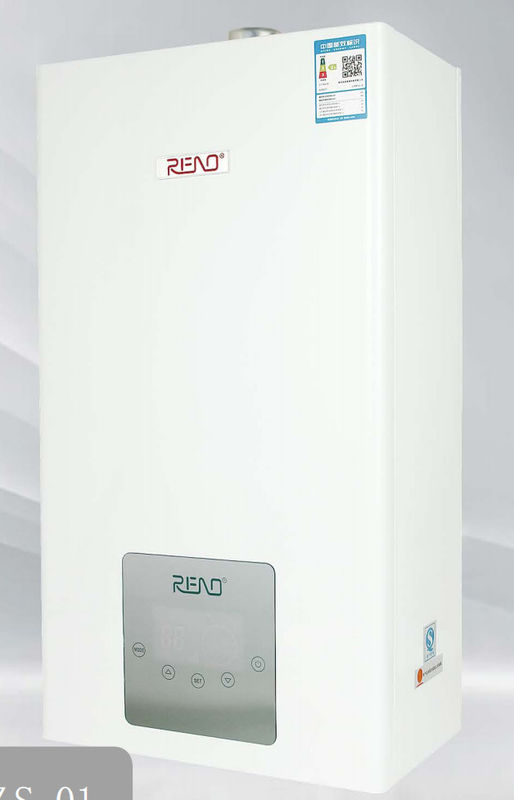

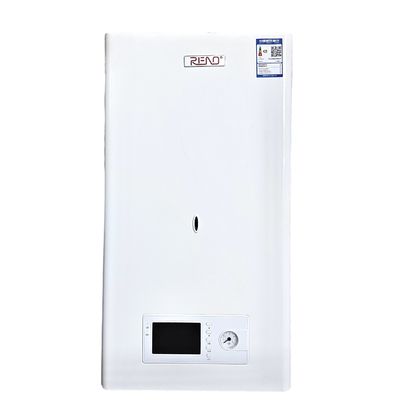

PRODUCT DISPLAY
The treatment measures are:
1. Unscrew the screw at the top of the water pump with a large "one" screw batch, and then loosen the internal shaft with a proper screw batch. After feeling no blockage, tighten the large "one" screw.
2. The wall mounted furnace software has the function of preventing the water pump from "locking". In the case of water supply and power supply, the water pump will automatically run for a period of time at an interval of 24 hours to prevent "locking". Please ensure that the wall hanging furnace is connected to water and electricity without leaving for a long time.
anti-impurity
Solid particle impurities in the heating system pipeline are easy to cause problems such as stuck water pump damage, running noise and so on. The most effective way to deal with them is to install filters with finer mesh in the return water outlet of the wall hanging furnace, and clean them regularly.
Scale control
Scale is the number one "killer" of the pump, can penetrate into the water pump inside each area, causing water pump wear, noise, stuck, burned out and other failures, for the water quality of the harder area, the use of wall hanging furnace must be softened in the system, adding neutral softener in the system!
Full premixed condensation technology is a way of pre-mixing air and gas to achieve the optimal ratio of combustion, and then recovering part of the heat energy (latent heat of water vapor) from the flue gas generated by combustion.
