26 Kw Gas Wall Mounted Boiler For Heating And Bathing Copper Casing Style

26 Kw Gas Wall Mounted For Heating And Bathing Copper Casing Style Boiler

GAS WALL HANGING BOILER INSTRUCTIONS

1. Safe and Reliable

With 21 kinds of safe protection•Low failure rate

2. Comfort

Ultra-quiet operation•more comfortable

3. Convenience

Touch control•more precise

4. Environmental protection

Eenrgy saving and environmental protection•Follow the trend

5. After sale

7*24 after-sales service,worry free

TECHNICAL DATA OF GAS WALL HANGING  BOILER

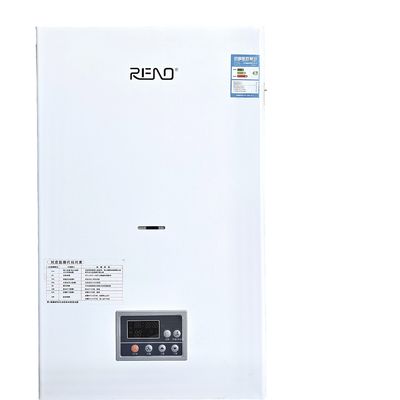

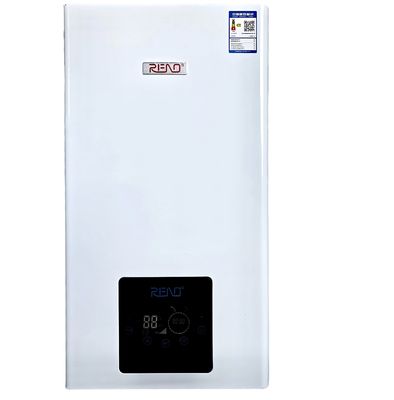

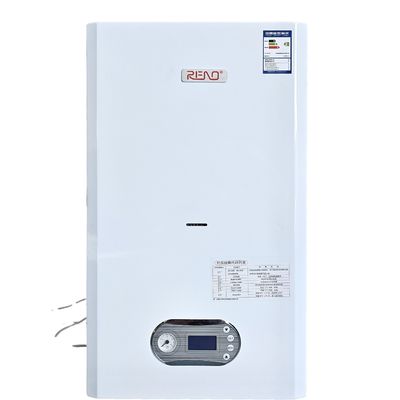

PRODUCT DISPLAY

The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.

The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.

The function of the main control circuit board: it is used to control the start, stop and constant temperature of the HVAC equipment.

The role of the main board: It is used to control the start and stop of the HVAC equipment, and constant temperature of the system.

The function of the gas valve is to ensure the normal combustion of the boiler. In a certain range of gas pressure, make the boiler stable combustion and can automatically adjust the gas supply according to the requirements of the boiler heat output, in order to realize the automatic shutdown of the boiler and gas proportion regulation.

The role of the air pressure switch: The air pressure switch is mainly responsible for the safety protection in the wall mounted furnace system. It is divided into two chambers by a valve inside, and the two chambers on both sides of the valve are respectively connected with two pressure measuring tubes. By comparing the pressure obtained by the pressure measuring tube, it can detect whether the smoke exhaust system is normal.

Combined gas heating hot water furnace, suitable for residential communities, hotels, office buildings, hospitals, schools and other enterprises and institutions. Furnace body The furnace body is provided with a water collecting pipe, a temperature detection probe is arranged above the water collecting pipe, and a water inlet branch pipe and an outlet branch pipe are arranged below, and a heating unit is arranged between the two pipes, and a collecting pipe is arranged at the bottom of the furnace. Supply gas to the heating unit. Pulse ignition, water and gas induction linkage, built-in controller to control ignition, combustion, heating water temperature, water pump start and stop. And the heating hot water stove has water shortage protection, anti-overheating protection, accidental flame out protection and other functions.

The furnace body has a collection pipe, inlet branch pipe, outlet branch pipe, circulating water pump, isolating water valve, collecting pipe, gas branch pipe, isolating gas valve, solenoid valve. Combustion first, its structural characteristics are: stove below the collecting pipe, the collecting pipe on the collecting pipe branch, the stove above the collecting pipe, the water inlet branch pipe and the water outlet branch pipe below the collecting pipe. There is a heating unit in parallel between the roads. The heating unit is composed of water passage, air passage and combustion chamber. The inlet branch is connected with the circulating water pump through the isolation water valve, and the circulating water pump is connected with the water diversion device, and the water diversion device is connected with the heat exchanger. The heat exchanger is connected to the water branch by isolating the water valve. The combustion chamber is located below the heat exchanger. The lower part of the combustion chamber is provided with a combustion head, the combustion head is provided with a pulse ignition needle and ignition needle, and the bottom is provided with a solenoid valve.

Heating hot water furnace works as any heating water, and at any time the water is hot water? The pulse ignition needle sends out an ignition pulse. The heat exchanger is heated so that the water coming out of heat exchanger 4 changes from cold water to hot water. When the water temperature is detected to reach the set temperature, first stop the bottom 1# heating unit, at the same time 2# heating unit start delay. If the temperature does not drop during the delay time, the 2# heating unit will burn gas after a sufficient delay time of 20 seconds. The valve closes, the flame goes out, the heating stops, and the unit is restarted if the temperature drops within the delay time. The unit of heating hot water furnace has the same working procedure as the unit.

The hot water heater works by adjusting the knob on the controller to set the temperature, ranging from 25°C to 80°C. Water is then injected into the system until the collector, inlet branch, outlet branch and heat exchanger are filled with water and the water pressure is maintained at about 1kg. Open the isolating water valve and isolating air valve, turn on the power and start the water pump. After the pump runs, water flow sensing device 5 action, high voltage pulse igniter linkage.

ABOUT US

Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade  wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.

Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
