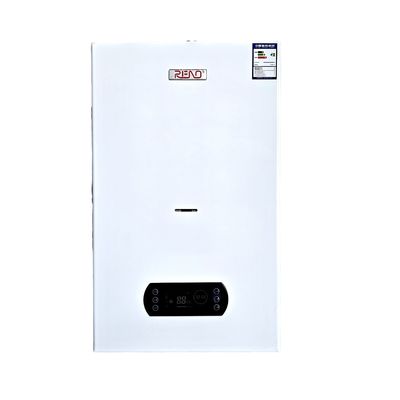

Intelligent Wall Mounted Condensing Gas Boiler Computer Control Combi Boilers

Intelligent Wall Mounted Condensing Gas Boiler Computer Control Combi Boilers

GAS WALL HANGING BOILER INSTRUCTIONS

1. Safe and Reliable

With 21 kinds of safe protection•Low failure rate

2. Comfort

Ultra-quiet operation•more comfortable

3. Convenience

Touch control•more precise

4. Environmental protection

Eenrgy saving and environmental protection•Follow the trend

5. After sale

7*24 after-sales service,worry free

TECHNICAL DATA OF GAS WALL HANGING  BOILER

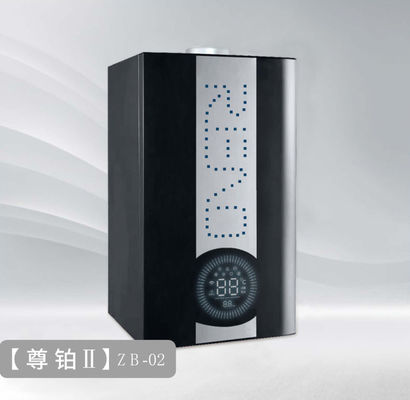

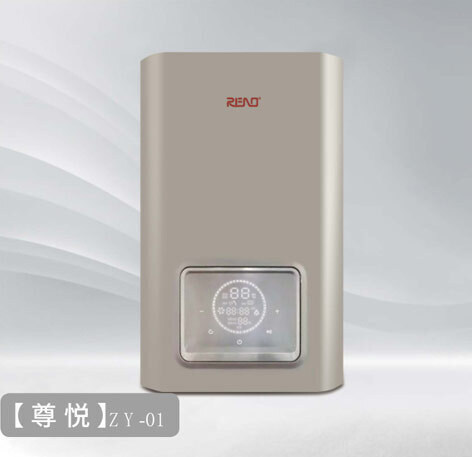

PRODUCT DISPLAY

Heating hot water furnace works as any heating water, and at any time the water is hot water? The pulse ignition needle sends out an ignition pulse. The heat exchanger is heated so that the water coming out of heat exchanger 4 changes from cold water to hot water. When the water temperature is detected to reach the set temperature, first stop the bottom 1# heating unit, at the same time 2# heating unit start delay. If the temperature does not drop during the delay time, the 2# heating unit will burn gas after a sufficient delay time of 20 seconds. The valve closes, the flame goes out, the heating stops, and the unit is restarted if the temperature drops within the delay time. The unit of heating hot water furnace has the same working procedure as the unit.

The furnace body has a collection pipe, inlet branch pipe, outlet branch pipe, circulating water pump, isolating water valve, collecting pipe, gas branch pipe, isolating gas valve, solenoid valve. Combustion first, its structural characteristics are: stove below the collecting pipe, the collecting pipe on the collecting pipe branch, the stove above the collecting pipe, the water inlet branch pipe and the water outlet branch pipe below the collecting pipe. There is a heating unit in parallel between the roads. The heating unit is composed of water passage, air passage and combustion chamber. The inlet branch is connected with the circulating water pump through the isolation water valve, and the circulating water pump is connected with the water diversion device, and the water diversion device is connected with the heat exchanger. The heat exchanger is connected to the water branch by isolating the water valve. The combustion chamber is located below the heat exchanger. The lower part of the combustion chamber is provided with a combustion head, the combustion head is provided with a pulse ignition needle and ignition needle, and the bottom is provided with a solenoid valve.

ABOUT US

Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade  wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.

Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
