Product Details:
|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20 | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | Gas Style: | NG/LPG |
| Gas Pressure(pa): | 2000/2800 | Color Shows: | WHITE |
| Product Name: | Wall Mounted Gas Boiler | ||
| High Light: | 20Kw Wall Mount Gas Boiler,20Kw Heating Water Gas Boiler |
||

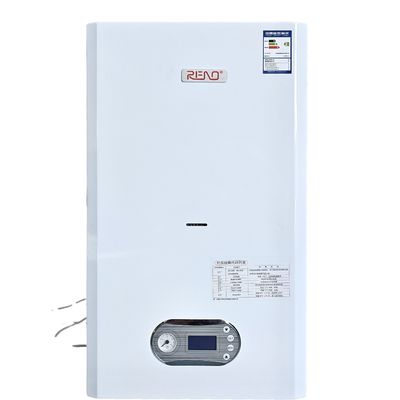

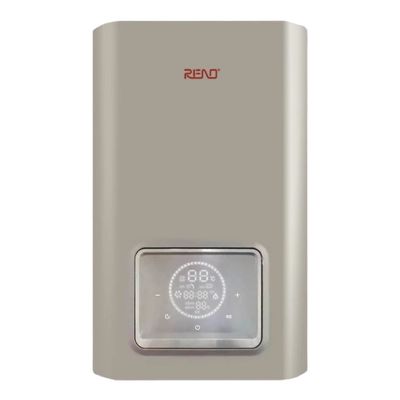

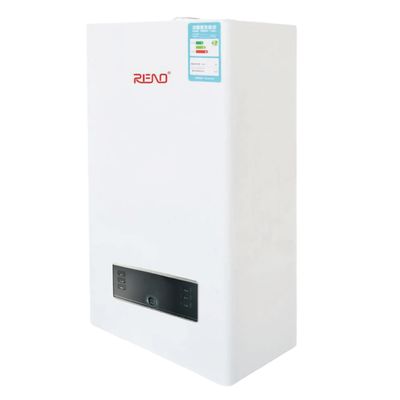

20 Kw Wall Mount Gas Boiler For Heating Water With Temperature Range Of 30-80 degree centigrade
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfortable
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB20-A{F1) |
|
SPECIFICATIONS |
A20-F1 |
|
RATED INPUT POWER(KW) |
20kw |
|
RATED OUTPUT POWER(KW) |
18kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
8Kg |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*245 |
| WEIGHT(KG) | 30kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODUCT DISPLAY
The function of the main control circuit board: it is used to control the start, stop and constant temperature of the HVAC equipment.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors.
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
The function of the gas valve is to ensure the normal combustion of the boiler. In a certain range of gas pressure, make the boiler stable combustion and can automatically adjust the gas supply according to the requirements of the boiler heat output, in order to realize the automatic shutdown of the boiler and gas proportion regulation.
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
Working principle of gas wall hanging furnace
The working principle of gas wall hanging furnace is that natural gas is burned in the wall hanging furnace, the hot water in the wall hanging
furnace is heated to a certain temperature, and the water in the wall hanging furnace is transported to the heating equipment. At the same time,the wall hanging furnace can also heat domestic hot water when using natural gas combustion. It can be used for heating and bathing.
ABOUT US
Company profile
Qingdao Hiounce HVAC Equipment Co., Ltd. is located in the beautiful coastal city of Qingdao, which was restructured from the state-owned boiler factory in 1958. The company is a high-tech enterprise which has a gas heating hot water boiler, condensing gas boiler, gas module boiler, air energy heat pump, air energy fan, fuel oil (gas) boiler, electric boiler, wall hanging boiler, electric wall hanging heater, stove, range hood, water heater, biomass particle heater as the leading, and set design, research and development, production, sales in one.
The company has more than 100 employees. Company headquarters have the general office, administration and human resources department, finance department, market management department, business department, office (provincial), import and export department, purchasing department, technology department, engineering department, after-sales service department and other 11 functional departments, through the perfect sales and service network, will provide customers the safe, stable, energy saving, environmental protection products .
The company covers an area of 13,600 square meters, plant area of 7,500 square meters, more than 100 sets of various production and processing equipment. The company has an annual output of 120,000 sets of wall hanging boiler production line and equipped with advanced testing equipment, according to the industry's high standards of the construction of research and development laboratory, product life laboratory, incoming materials laboratory and finished products laboratory.
The booming Chinese wall - hung boiler market provides great development space for the growth of Hiounce Company. The company gathers many elites in the industry, adhering to the concept of "innovation, quality, safety, energy saving, environmental protection", timely understanding of customer‘s needs and changes, combined with the latest thermal energy technology to develop suitable for the market of high-tech thermal energy technology products, in strict accordance with the European standards for manufacturing and testing, to meet the growing needs of customers. It is committed to becoming a professional company providing integrated services including products, technical support, supporting and customer service, and an international manufacturing base for boilers, heat pumps and gas appliances.
