Product Details:
|
| Installation: | Mounted On The Wall | Outside Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 20-42kw | Gas Style: | NG/LPG |
| Outside Color: | WHITE OPTIONAL | Description: | USE NG/LPG WALL HUNG BOILER |
| Gas Pressure(pa): | NG2000/LPG2800pa | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | Heating Gas Wall Hung Boiler,Bathing Gas Wall Hung Boiler,Energy Saving Gas Wall Hung Boiler |
||
Environmental-Friendly Gas Wall Hung Boiler for Energy-Saving Heating and Bathing
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
|
SPECIFICATIONS |
A20-40-F3/B20-40-F3 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
18-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

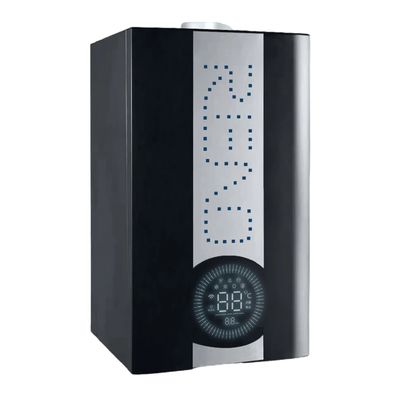

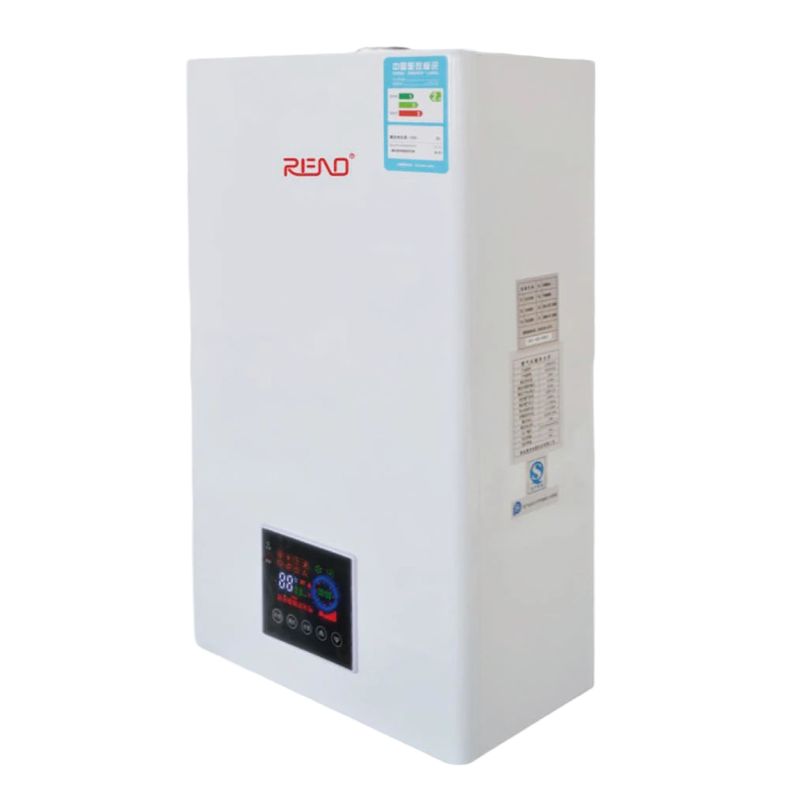

PRODUCT DISPLAY
Combined gas heating hot water furnace, suitable for residential communities, hotels, office buildings, hospitals, schools and other enterprises and institutions. The furnace body is provided with a water collecting pipe, a temperature detection probe is arranged above the water collecting pipe, and a water inlet branch pipe and an outlet branch pipe are arranged below, and a heating unit is arranged between the two pipes, and a collecting air pipe is arranged at the bottom of the furnace. Supply gas to the heating unit. Pulse ignition, water and gas induction linkage, built-in controller to control ignition, combustion, heating water temperature, water pump start and stop. And the heating hot water stove has water shortage protection, anti-overheating protection, accidental flame out protection and other functions.
Combined gas water heater
The utility model relates to a combined type gas heating hot water furnace, which is suitable for residential communities, hotels, office buildings, hospitals, schools and other enterprises and institutions.
