Product Details:
|
| Installation: | Mounted On The Wall | Outside Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 20-42kw | Gas Style: | NG/LPG |
| Outside Color: | WHITE OPTIONAL | Description: | USE NG/LPG WALL HUNG BOILER |
| Gas Pressure(pa): | NG2000/LPG2800pa | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | Shell Material: | Stainless Steel |
| Gas Type: | NG/LPG | Dual Funtions: | Heating And Bathing |
| Warranty: | 5 Years | Case Material: | Stainless Steel Or Metal |
| Gas Pressure: | 2000pa/2800pa | Installation Type: | Wall Mount |
| Outside Material: | Stainless Steel | Protection Measures: | 21 Kinds Of Protection Measures |
| Reveal: | LED Displayer Optional | Venting Type: | Direct Vent |
| Color Shows: | White | Main Component: | Imported |
| Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure | ||
| High Light: | Environmental Friendly Gas Wall Mount Boiler,Bathing Gas Wall Mount Boiler,Heating Gas Wall Mount Boiler |
||
Gas Wall Mount Boiler for Energy Saving and Environmental Friendly Heating and Bathing
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
|
SPECIFICATIONS |
A20-40-F3/B20-40-F3 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
18-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

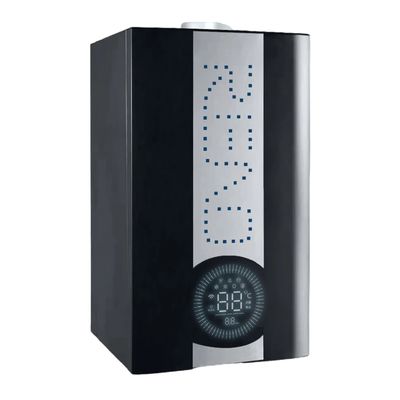

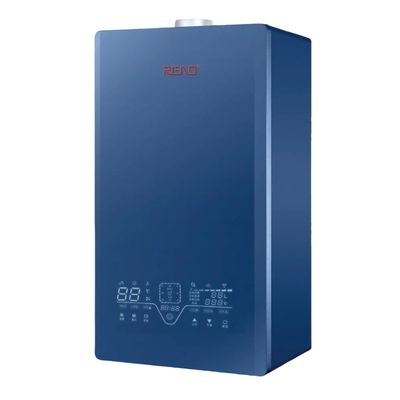

PRODUCT DISPLAY
△t=25K means the standard temperature rise, which means the temperature rise of 25 degrees Celsius. K is the basic unit of Kelvin temperature scale, but its basic measure is equivalent to the basic unit of Celsius temperature, ℃. Gas water heater is designed and calculated based on the "standard conditions" of initial water temperature of 15℃ (close to the average cold water temperature across the country) and output water temperature of 40℃ (close to the bathing temperature of most people), so the water heater is based on 25℃ as the basic temperature rise.
The hot water rate of gas water heaters is a technical term, which in commercial colloquialism is what we call "liters". A 12-litre water heater, for example, is a gas burner that can produce up to 12 litres of hot water per minute (the meaning of "rated" is here)
