Product Details:
|
| Display: | LED Displayer Optional | Power (KW): | 40kw |
|---|---|---|---|
| Gas Pressure: | 2000pa/2800pa | Gas Type: | NG/LPG |
| Color: | WHITE | Housing Material: | Stainless Steel |
| Product Name: | Wall Mount Gas Boiler | Heat Efficiency: | At Least 90% |
| Installation: | Wall Mounted | ||
| High Light: | Environmental Protection Wall Mount Gas Boiler,Energy Saving Wall Mount Gas Boiler |
||
Energy-Saving Environmental Protection Wall Mount Gas Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F1) |
|
SPECIFICATIONS |
A20-40-F1/B20-40-F1 |
|
RATED INPUT POWER(KW) |
40kw |
|
RATED OUTPUT POWER(KW) |
36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30k HOT WATER SUPPLY(KG/MIN) |
16
|
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

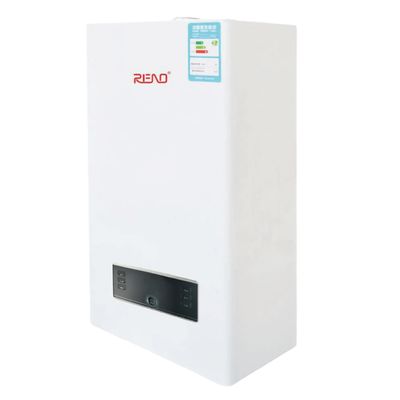

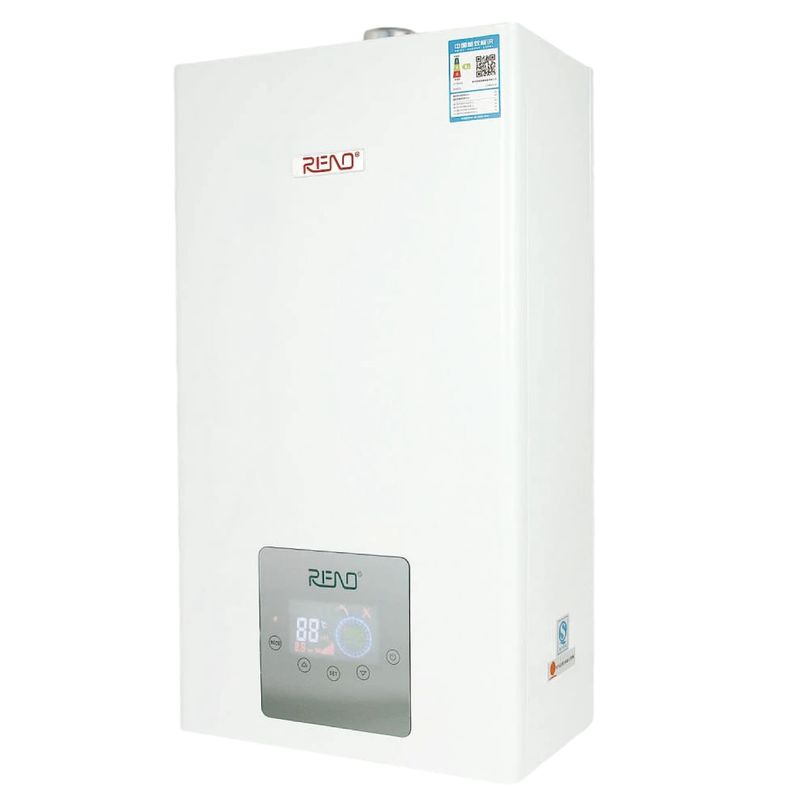

PRODUCT DISPLAY
RENO instant hot water boiler is used to heat the entire house,equipped with a copper heat exchanger with adjustable mesh burner and an integrated domestic hot water plate heat exchanger for showers and faucet.The heater features a digital display main screen for easy parameter setting. We can customize the internal structure to single heat exchanger,double heat exchanger,condensing or premix configuration which based on your requirements.The input power of the gas boiler ranges from 20kw-40kw.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
