Product Details:
|
| Display: | LED Displayer Optional | Power (KW): | 40kw |
|---|---|---|---|
| Gas Pressure: | 2000pa/2800pa | Gas Type: | NG/LPG |
| Color: | WHITE | Housing Material: | Stainless Steel |
| Product Name: | Wall Mount Gas Boiler | Heat Efficiency: | At Least 90% |
| Installation: | Wall Mounted | ||
| High Light: | Gas Fired Central Heating Boiler,40Kw Central Heating Boiler |
||

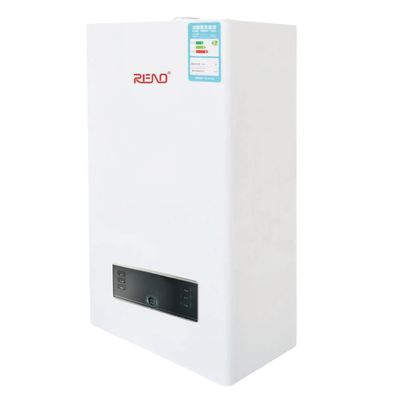

40 Kw Gas-Fired Central Heating Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F1) |
|
SPECIFICATIONS |
A20-40-F1/B20-40-F1 |
|
RATED INPUT POWER(KW) |
40kw |
|
RATED OUTPUT POWER(KW) |
36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30k HOT WATER SUPPLY(KG/MIN) |
16
|
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

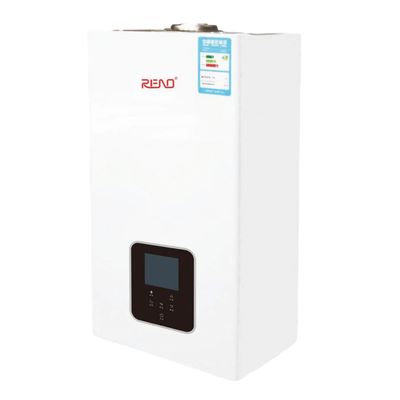

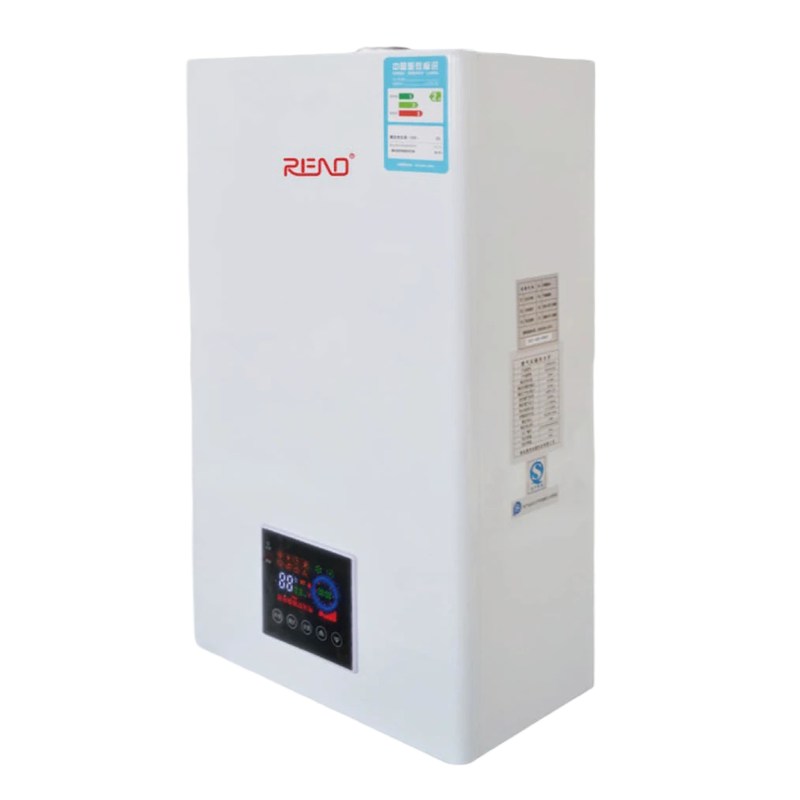

PRODUCT DISPLAY
RENO instant hot water boiler is used to heat the entire house,equipped with a copper heat exchanger with adjustable mesh burner and an integrated domestic hot water plate heat exchanger for showers and faucet.The heater features a digital display main screen for easy parameter setting. We can customize the internal structure to single heat exchanger,double heat exchanger,condensing or premix configuration which based on your requirements.The input power of the gas boiler ranges from 20kw-40kw.
The testing process for RENO gas wall hang boiler.
Step 1: Hang the machine
The first step is to hang the machine in the design area for testing.
Step 2:Connecting pipes and power next to water inlet and outlet pipes as well as the gas pipe, which are connected to the boiler,the power supply is also plugged in.
Step 3:water pressure test
The water switch is turned on to conduct the high pressure test to check the water circuit for any leaks.
Step 4: gas temperature test
After the water test,the gas switch is turned on to test the highest and lowest temperature that the boiler can reach.
Step 5: gas valve seal test
The seal of gas valve is checked to ensure it is airtight and secure each gas boiler undergoes two rounds of testing:the first is the semi-finished product test and the second is the finished product test.
Additional a sampling inspection is conducted to ensure the overall quality of the products.
This meticulous testing process ensures that every gas hung boiler meets the required standard for safety and performance.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
