Product Details:
|
| Display: | LED Displayer Optional | Gas Type: | NG/LPG |
|---|---|---|---|
| Color: | WHITE | Housing Material: | Stainless Steel |
| Power (KW): | 40kw | Gas Pressure: | 2000pa/2800pa |
| Product Name: | Wall Mount Gas Boiler | Heat Efficiency: | At Least 90% |
| Installation: | Wall Mounted | ||
| High Light: | Homeuse Gas Fired Boiler,Winter Heating Gas Fired Boiler,Bathing Gas Fired Boiler |
||

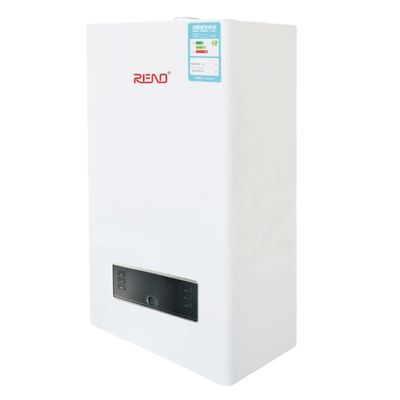

Gas Fired For Winter Heating And Bathing Combi Homeuse Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F1) |
|
SPECIFICATIONS |
A20-40-F1/B20-40-F1 |
|
RATED INPUT POWER(KW) |
40kw |
|
RATED OUTPUT POWER(KW) |
36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30k HOT WATER SUPPLY(KG/MIN) |
16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODUCT DISPLAY

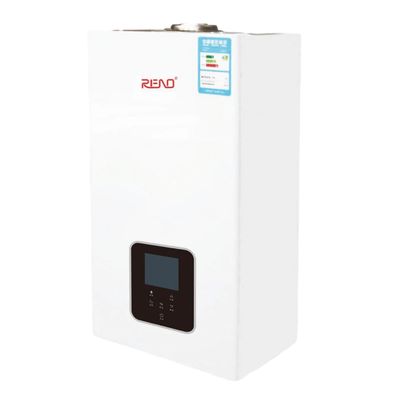

RENO instant hot water boiler is used to heat the entire house,equipped with a copper heat exchanger with adjustable mesh burner and an integrated domestic hot water plate heat exchanger for showers and faucet.The heater features a digital display main screen for easy parameter setting. We can customize the internal structure to single heat exchanger,double heat exchanger,condensing or premix configuration which based on your requirements.The input power of the gas boiler ranges from 20kw-40kw.
The testing process for RENO gas wall hang boiler.
Step 1: Hang the machine
The first step is to hang the machine in the design area for testing.
Step 2:Connecting pipes and power next to water inlet and outlet pipes as well as the gas pipe, which are connected to the boiler,the power supply is also plugged in.
Step 3:water pressure test
The water switch is turned on to conduct the high pressure test to check the water circuit for any leaks.
Step 4: gas temperature test
After the water test,the gas switch is turned on to test the highest and lowest temperature that the boiler can reach.
Step 5: gas valve seal test
The seal of gas valve is checked to ensure it is airtight and secure each gas boiler undergoes two rounds of testing:the first is the semi-finished product test and the second is the finished product test.
Additional a sampling inspection is conducted to ensure the overall quality of the products.
This meticulous testing process ensures that every gas hung boiler meets the required standard for safety and performance.
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
1. Small family Because the wall hanging furnace does not occupy the floor space, it is suitable for small family use.
2. Newly renovated houses In newly renovated houses, you can consider using a wall hanging stove as a heating method.
3. Renovation of old houses For the renovation of old houses, wall hanging furnaces can reduce the use of pipes and save installation costs.
4. Wall hanging furnaces in commercial places can be used for heating in commercial places, such as hotels, restaurants, offices, etc.
1. Keep room temperature stable Wall hanging furnace can quickly heat up, keep room temperature stable, let people feel comfortable warmth.
2. Reduce humidity The heating method of the wall hanging furnace can reduce the indoor humidity, which is especially suitable for areas or seasons where the humidity is too high.
3. Improve air quality The use of gas or electricity as an energy source, compared with the traditional coal-burning heating method, reduces the emission of harmful gases and improves indoor air quality.
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
