Product Details:
|
| Gas Pressure: | 2000pa/2800pa | Power (KW): | 40kw |
|---|---|---|---|
| Display: | LED Displayer Optional | Color: | WHITE |
| Product Name: | Wall Mount Gas Boiler | Heat Efficiency: | At Least 85% |
| Color Shows: | Brown | Housing Material: | Stainless Steel |
| Two Kinds Ofgas: | NG/LPG | Pretection Mearure Kind: | 21 Kinds Kf Security Protection Measure |
| Gas Style: | NG/LPG | Ignition Type: | Electronic Pulse Ignition |
| Way To Install: | Wall Mounted | Protection Measures: | 21 Kinds Of Protection Measures |
| Appearance Material: | Stainless Steel | ||
| High Light: | Touch Control Wall Mount Gas Boiler,Versatile Application Wall Mount Gas Boiler,Trendy Design Wall Mount Gas Boiler |
||
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F1) |
|
SPECIFICATIONS |
A20-40-F1/B20-40-F1 |
|
RATED INPUT POWER(KW) |
40kw |
|
RATED OUTPUT POWER(KW) |
36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30k HOT WATER SUPPLY(KG/MIN) |
16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

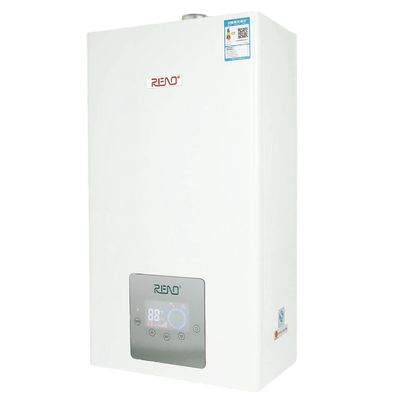

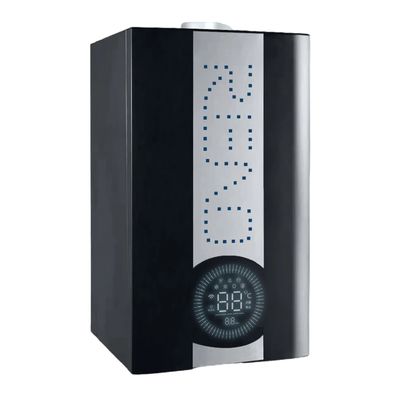

PRODUCT DISPLAY
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
RENO instant hot water boiler is used to heat the entire house,equipped with a copper heat exchanger with adjustable mesh burner and an integrated domestic hot water plate heat exchanger for showers and faucet.The heater features a digital display main screen for easy parameter setting. We can customize the internal structure to single heat exchanger,double heat exchanger,condensing or premix configuration which based on your requirements.The input power of the gas boiler ranges from 20kw-40kw.
The testing process for RENO gas wall hang boiler.
Step 1: Hang the machine
The first step is to hang the machine in the design area for testing.
Step 2:Connecting pipes and power next to water inlet and outlet pipes as well as the gas pipe, which are connected to the boiler,the power supply is also plugged in.
Step 3:water pressure test
The water switch is turned on to conduct the high pressure test to check the water circuit for any leaks.
Step 4: gas temperature test
After the water test,the gas switch is turned on to test the highest and lowest temperature that the boiler can reach.
Step 5: gas valve seal test
The seal of gas valve is checked to ensure it is airtight and secure each gas boiler undergoes two rounds of testing:the first is the semi-finished product test and the second is the finished product test.
Additional a sampling inspection is conducted to ensure the overall quality of the products.
This meticulous testing process ensures that every gas hung boiler meets the required standard for safety and performance.
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
The advantages of wall hanging boiler
1. Space saving wall hanging furnace is installed on the wall, does not occupy the ground space, especially suitable for small family use.
2. Energy saving and environmental protection Because the wall hanging furnace uses gas or electricity as an energy source, compared with the traditional coal-fired heating method, the wall hanging furnace is more environmentally friendly and can reduce the emissions of harmful gases such as carbon dioxide.
3. Safe and reliable wall hanging furnace adopts advanced safety protection devices, such as leakage protection, overheating protection, etc., to ensure the safety of the family.
4. Intelligent control wall hanging furnace can be remotely controlled by intelligent control system, adjust temperature, switch on and off, etc., convenient and fast.
