Product Details:
|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26 | Product Name: | Wall Mounted Gas Boiler |
| Gas Style: | NG/LPG | Displaying: | LED Displayer Optional |
| Color Shows: | Brown | Heat Efficiency(%): | ≥90 |
| Gas Pressure(pa): | 2000/2800 | ||
| High Light: | Energy Saving Gas Wall Mounted Boiler,Trend Gas Wall Mounted Boiler,Environmental Protection Gas Wall Mounted Boiler |
||
| MODEL No. | L1PB26-A{F1) |
|
SPECIFICATIONS |
A26-F1 |
|
RATED INPUT POWER(KW) |
26kw |
|
RATED OUTPUT POWER(KW) |
23.5kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60℃ HEATING HOT WATER:30-80℃ |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
10Kg |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

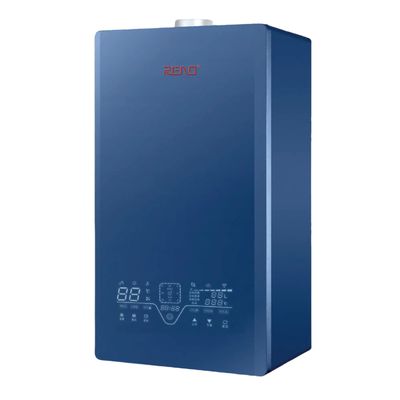

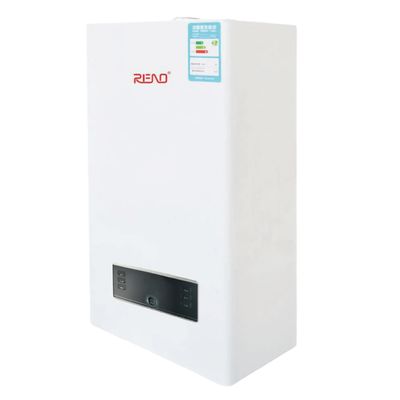

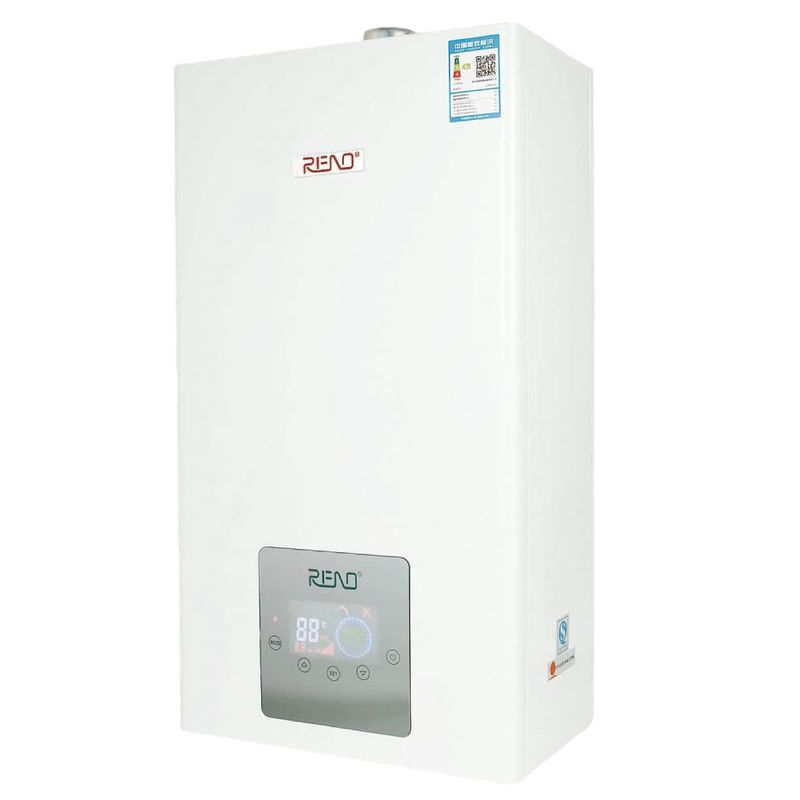

PRODUCT DISPLAY
Follow the Trend Energy Saving and Environmental Protection Gas Wall Mounted Boiler
The role of the main heat changer: the main heat changer is the part of heat exchange between the flue gas which is produced by gas combustion and the water in the system. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat changer has been treated with efficient anti-corrosion , which ensures the service life of the system.
According to the size of the hot water capacity, the wall hanging boiler can be divided into the following three types
1. The hot water capacity of low-power wall hanging boiler is less than 6 liters, which is suitable for small household use, such as one room, one room, two rooms, etc.
2. The hot water capacity of medium power type wall hanging boiler is between 6 liters and 12 liters, which is suitable for medium household use, such as two rooms and one hall, two rooms and two halls.
3. The hot water capacity of high-power wall hanging boiler is more than 12 liters, which is suitable for large household use, such as three rooms and one hall, three rooms and two halls.
GAS WALL HANGING BOILER
The gas-fired wall-mounted boiler has dual functions of heating and bathing. Gas wall mounted boiler has a powerful home central heating function, can meet the heating requirements of multiple rooms, each room can be set according to the needs of comfortable temperature, but also according to the need to decide to close the heating of a room, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economical and practical.
The use of gas wall furnace has the following advantages:
1. Higher comfort, air conditioning heating room temperature uniformity is very poor, the temperature near the air outlet is higher, while the temperature away from the air outlet is lower;
2. Fast heating, air conditioning heating takes a long time to increase the indoor temperature, and gas wall hanging boiler + radiator can quickly increase the indoor temperature;
3. Low noise, there is obvious noise at the air conditioner heating outlet, and the gas wall hanging furnace only has noise near the wall hanging furnace, and there is no noise in other places
