Product Details:
|
| Installation: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 32-40 | Gas Type: | NG/LPG |
| Color: | WHITE | Product Name: | Wall Hung NG/LPG Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | 40kw Gas Combi Boilers,32kw Gas Combi Boilers,3C Wall Hung Gas Fired Condensing Boiler |
||
Rated Powre Input 32-40kw Made In China New Style Wall Mounted Gas Boiler For Heating And Hot Water Heater
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB32-40-A(M1) |
|
SPECIFICATIONS |
A32-40-M1/B32-40-M1 |
|
RATED INPUT POWER(KW) |
32-40 |
|
RATED OUTPUT POWER(KW) |
28.8-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 38-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

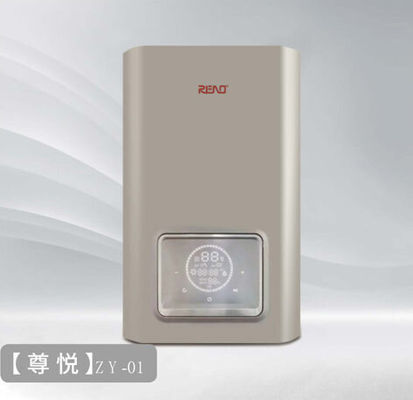

PRODECT DISPLAY
