Product Details:
|
| Way To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 24kw | Gas Style: | NG/LPG |
| Color Shows: | Brown | Product Name: | Wall Hung Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displays: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90% | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | Power Out(kw): | 18kw |
| High Light: | 24kw High Efficiency Wall Mounted Gas Boiler,High Efficiency Wall Mounted Gas Boiler 3C,24kw Wall Hung Instant Gas Water Heater |
||
Wall Hung Gas Water Boiler Constant Temperature And Use Imported "Wilo" Or "Grundfos" Bran Pumps
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB24-A(C3) |
|
SPECIFICATIONS |
A24-TG1/BH1 |
|
RATED INPUT POWER(KW) |
24kw |
|
RATED OUTPUT POWER(KW) |
21.6kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
9.5 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

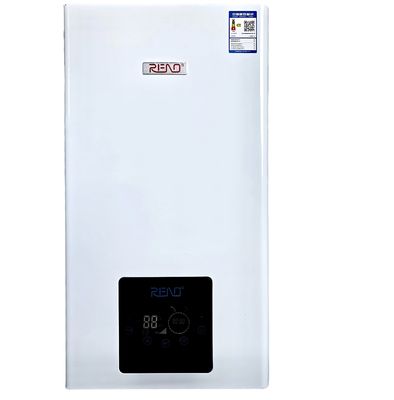

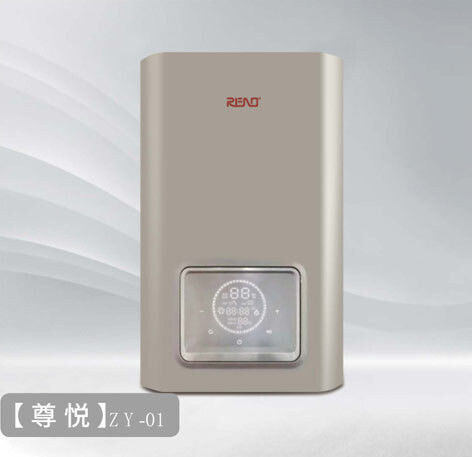

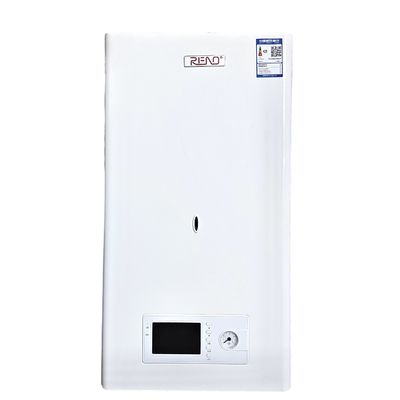

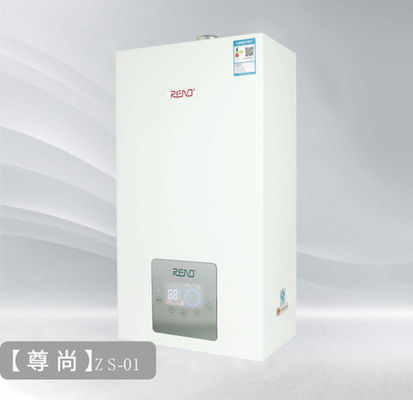

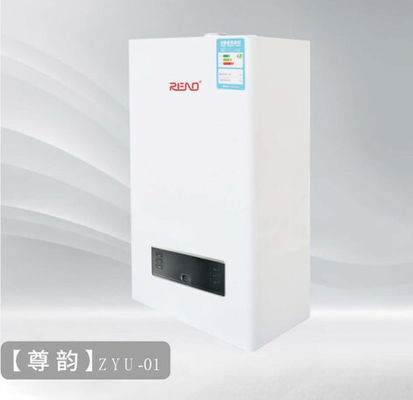

PRODECT DISPLAY
