Product Details:
|
| Installation: | Mounted On The Wall | Outside Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 20kw | Gas Style: | NG/LPG |
| Outside Color: | Blue Or OPTIONAL | Description: | USE NG/LPG WALL HUNG BOILER |
| Gas Pressure(pa): | NG2000/LPG2800pa | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | 20kw Condensing Gas Boiler,Wall Hung Condensing Gas Boiler,ISO9001 Gas Combi Boiler |
||
20kw Wall Mounted Condensing Gas Boiler Wall Hung Gas Combi Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | LLGBQ20-JK |
|
SPECIFICATIONS |
Q20-JK |
|
RATED INPUT POWER(KW) |
20KW |
|
RATED OUTPUT POWER(KW) |
21.6 |
|
THERMAL EFFICIENCY(%) |
≥108 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/120 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=25℃ HOT WATER SUPPLY(KG/MIN) |
8 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.05-0.6 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*245 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

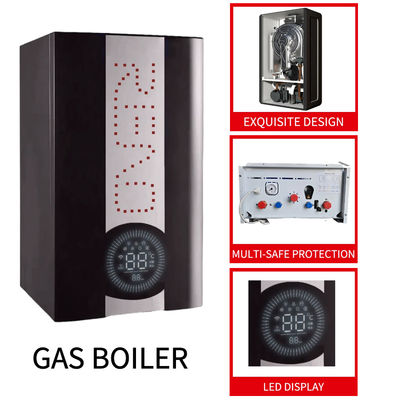

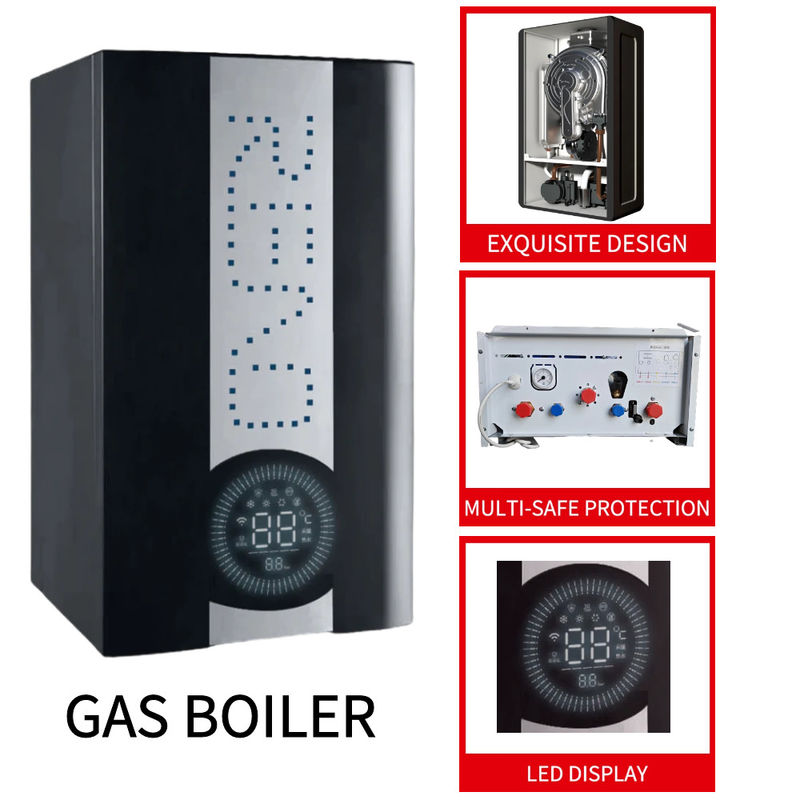

PRODUCT DISPLAY
Simple working principle(The premise is electricity on, gas on, water on.)
When the water flow sensor senses the water flow, a signal is transmitted to our main board, which gives instructions for the fan to turn. The air
produced by the rotation of the fan flows back to the air pressure switch, and the signal is transmitted to the main board, which gives instructions
for the ignition needle and solenoid valve to start heating, and the gas is burned to produce exhaust gas. The exhaust gas produced by
is discharged through the fan. The resulting hot water flows out of the heat exchanger.
Working principle of gas wall hanging furnace
The working principle of gas wall hanging furnace is that natural gas is burned in the wall hanging furnace, the hot water in the wall hanging
furnace is heated to a certain temperature, and the water in the wall hanging furnace is transported to the heating equipment. At the same time,
the wall hanging furnace can also heat domestic hot water when using natural gas combustion. It can be used for heating and bathing.
