Product Details:
|
| Way To Install: | Wall Mounted | Dual Funtions: | Heating And Bathing |
|---|---|---|---|
| Shell Material: | Stainless Steel | Power (KW): | 24kw |
| Gas Style: | NG/LPG | Color Shows: | White |
| Product Name: | Wall Hung Gas Boiler | Gas Pressure(pa): | 2000/2800pa |
| Displays: | LED Displayer Optional | Heat Efficiency(%): | ≥90% |
| Protection: | 21 Kinds Of Protection Measures | ||
| High Light: | 3C Wall Hung Combi Boiler,Wall Lpg Gas Water Boiler,Touch Screen Lpg Gas Boiler |
||

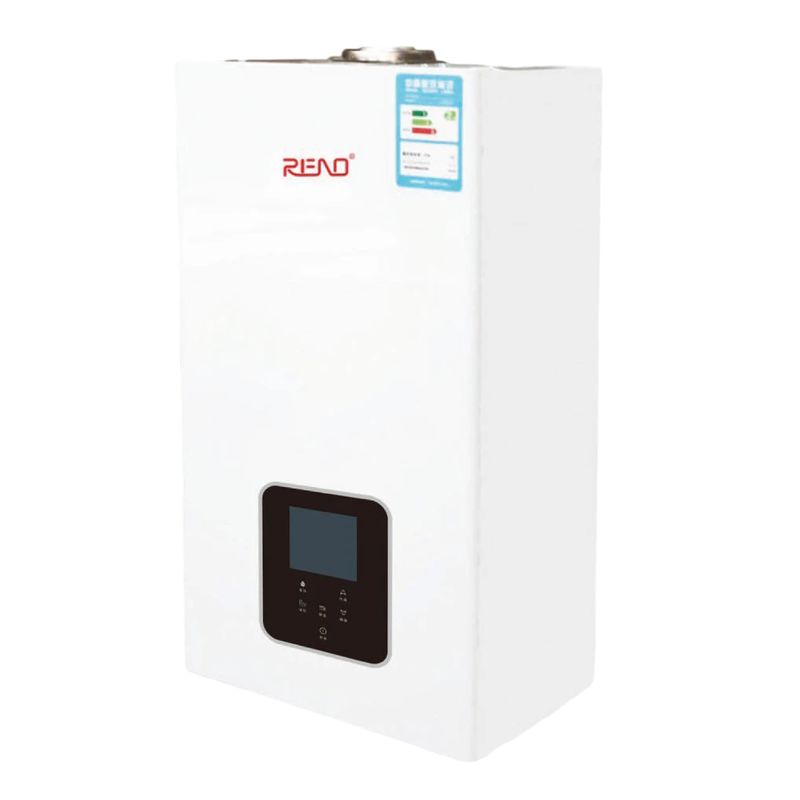

White Wall Hung Combi Boiler 24kw Touch Screen Lpg Gas Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB24-B(F4) |
|
SPECIFICATIONS |
A24-F4/B24-F4 |
|
RATED INPUT POWER(KW) |
24kw |
|
RATED OUTPUT POWER(KW) |
21.6kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/50/105 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
11.5L |
|
APPLICATIVE LIVING HOT WATER PRESSURE(MPA) |
0.015-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 710*420*230mm |
| WEIGHT(KG) | 25.2kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODECT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
Function of expansion tank: It is used to absorb and compensate the expansion and shrinkage of water in the system, also used as system water supply.
