Product Details:
|
| Dual Funtions: | Heating And Hot Water Supply | Heat Efficiency(%): | ≥90% |
|---|---|---|---|
| Shell Material: | Stainless Steel | Way To Install: | Wall Mounted |
| Power (KW): | 28kw | Displays: | LED Displayer Optional |
| Gas Style: | NG/LPG | Color Shows: | Brown |
| Product Name: | Wall Hung Gas Boiler | Gas Pressure(pa): | 2000/2800pa |
| Protection: | 21 Kinds Of Protection Measures | ||
| High Light: | Lpg Gas Combi Boiler,Lpg Gas Combi Boiler 28kw,Brown Panel Lpg Combi Boiler |
||

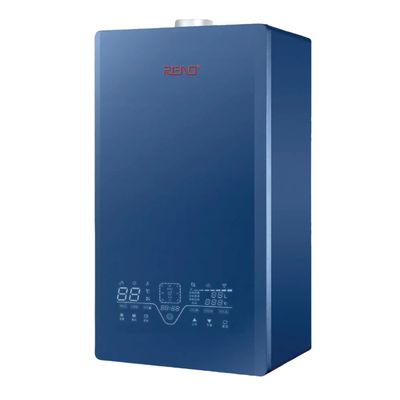

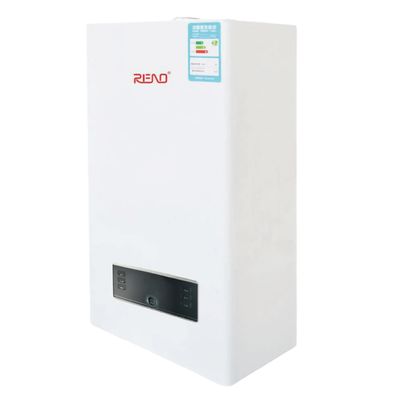

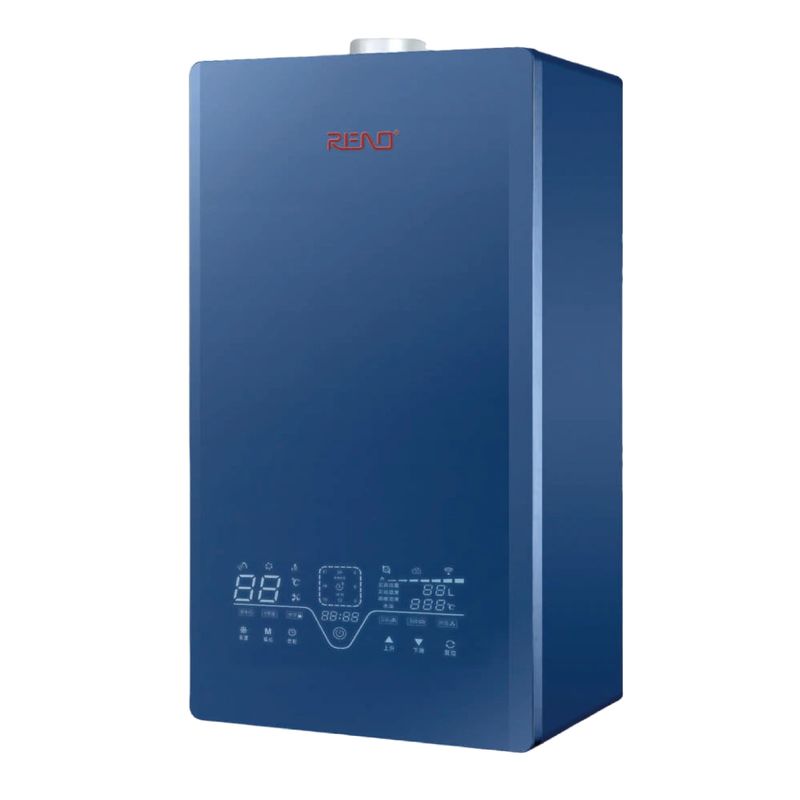

Brown Panel Wall Mounted Combi Boiler 28kw Touch Screen Lpg/Natural Gas Hot Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB28-A(F4) |
|
SPECIFICATIONS |
A28-F4/B28-F4 |
|
RATED INPUT POWER(KW) |
28kw |
|
RATED OUTPUT POWER(KW) |
25kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/50/125 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13L |
|
APPLICATIVE LIVING HOT WATER PRESSURE(MPA) |
0.015-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*300mm |
| WEIGHT(KG) | 31.85kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODECT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
Function of expansion tank: It is used to absorb and compensate the expansion and shrinkage of water in the system, also used as system water supply.
The function of the main control circuit board: it is used to control the start, stop and constant temperature of the HVAC equipment.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors.
