Product Details:
|
| Heat Efficiency(%): | ≥90% | Shell Material: | Stainless Steel |
|---|---|---|---|
| Way To Install: | Wall Mounted | Dual Funtions: | Heating And Hot Water Supply |
| Color Shows: | White | Power (KW): | 26-28kw |
| Displays: | LED Displayer Optional | Product Name: | Wall Hung Gas Boiler |
| Protection: | 21 Kinds Of Protection Measures | Gas Style: | NG/LPG |
| Gas Pressure(pa): | 2000/2800pa | ||
| High Light: | Wall Mounted Lpg Combi Boiler,Touch Screen Lpg Combi Boiler,28kw Wall Mounted Combi Boilers |
||
Heating And Hot Water Supply Wall Mounted Combi Boiler 26-28kw Touch Screen Lpg/Natural Gas Hot Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26-28-A(F1) |
SPECIFICATIONS | A26-28-F1/B26-28-F1 |
RATED INPUT POWER(KW) | 26-28kw |
RATED OUTPUT POWER(KW) | 23.5-25kw |
HEAT EFFICIENCY(%) | ≥90% |
RATED VOLTAGE FREQUENCY(V/Hz) | 220/50/125 |
GAS TYPE | NG/LPG |
GAS PRESSURE(Pa) | 2000/2800Pa |
TEMP.RANGE OF HEATING WATER(℃) | DHW:30-60 HEATING HOT WATER:30-80 |
△T=30℃ HOT WATER SUPPLY(KG/MIN) | 12-13L |
APPLICATIVE LIVING HOT WATER PRESSURE(MPA) | 0.015-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*300mm |
| WEIGHT(KG) | 31.8kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

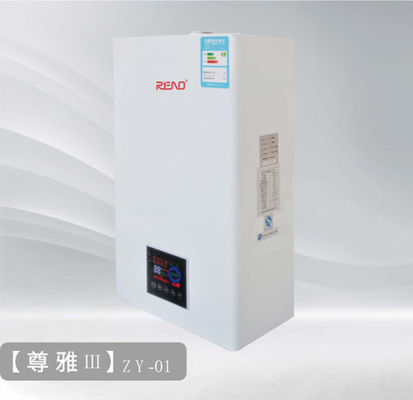

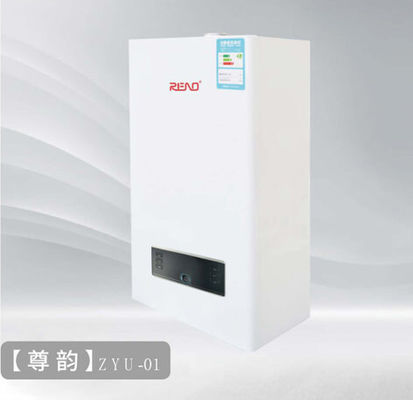

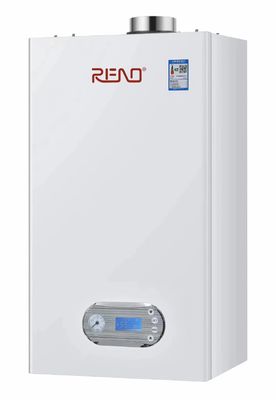

PRODUCT DISPLAY
The gas wall hanging furnace can be used for both purposes, while the ordinary household gas water heater generally only provides hot water function. Gas wall mounted stoves have a powerful family central heating function, can meet the heating needs of multi-room, can be connected to a variety of heating systems such as radiator, floor heating and fan coil. You can also decide to turn off the heating in a room separately according to your needs, and the gas wall hanging furnace can also provide the function of domestic hot water. You can use it both ways. The gas water heater supplies hot water for a short time and also uses gas as fuel, and its main function is to provide domestic hot water for families.
The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
The role of the air pressure switch: The air pressure switch is mainly responsible for the safety protection in the wall mounted furnace system. It is divided into two chambers by a valve inside, and the two chambers on both sides of the valve are respectively connected with two pressure measuring tubes. By comparing the pressure obtained by the pressure measuring tube, it can detect whether the smoke exhaust system is normal.
Function of expansion tank: It is used to absorb and compensate the expansion and shrinkage of water in the system, also used as system water supply.
The function of the main control circuit board: it is used to control the start, stop and constant temperature of the HVAC equipment.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors.
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the Venturi tube of the burner, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
