Product Details:
|
| Way To Install: | Wall Mounted | Dual Funtions: | Heating And Bathing |
|---|---|---|---|
| Shell Material: | Stainless Steel | Power (KW): | 24kw |
| Gas Style: | NG/LPG | Color Shows: | White |
| Product Name: | Wall Hung Gas Boiler | Gas Pressure(pa): | 2000/2800pa |
| Displays: | LED Displayer Optional | Heat Efficiency(%): | ≥90% |
| Protection: | 21 Kinds Of Protection Measures | ||
| High Light: | Wall Hung Combi Boiler,Wall Hung Combi Boiler 24kw,24kw Lpg Gas Water Boiler |
||

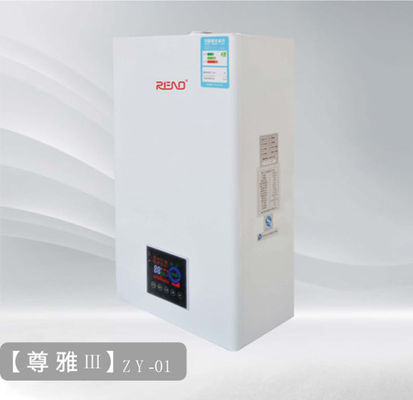

White Wall Hung Combi Boiler For Heating And Hot Water Supply24kw Touch Screen Lpg Gas Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB24-B(F4) |
|
SPECIFICATIONS |
A24-F4/B24-F4 |
|
RATED INPUT POWER(KW) |
24kw |
|
RATED OUTPUT POWER(KW) |
21.6kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/50/105 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
11.5L |
|
APPLICATIVE LIVING HOT WATER PRESSURE(MPA) |
0.015-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 710*420*230mm |
| WEIGHT(KG) | 25.2kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

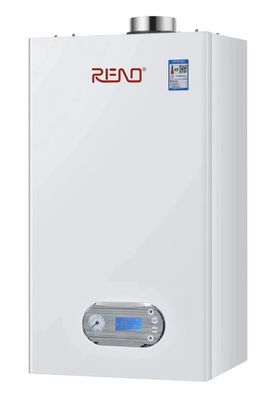

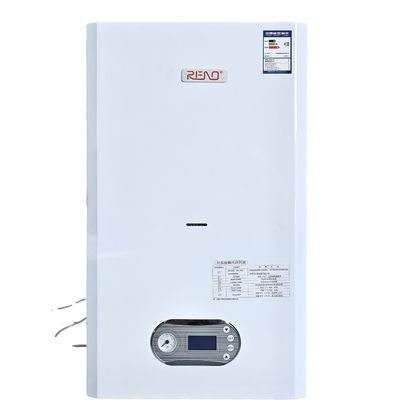

PRODECT DISPLAY
The role of the air pressure switch: The air pressure switch is mainly responsible for the safety protection in the wall mounted furnace system. It is divided into two chambers by a valve inside, and the two chambers on both sides of the valve are respectively connected with two pressure measuring tubes. By comparing the pressure obtained by the pressure measuring tube, it can detect whether the smoke exhaust system is normal.
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
Function of expansion tank: It is used to absorb and compensate the expansion and shrinkage of water in the system, also used as system water supply.
The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
