Product Details:
|
| Power (KW): | 28kw | Gas Type: | NG/LPG |
|---|---|---|---|
| Color: | WHITE | Product Name: | Wall Hung NG/LPG Gas Boiler |
| Installation: | Wall Mounted | Gas Pressure(pa): | 2000/2800 |
| Covering Material: | Stainless Steel | Displaying: | LED Displayer Optional |
| Thermal Efficiency(%): | More Than 90 | ||
| High Light: | 28KW PLG Combi Boilers,28KW Natural Gas Combi Boilers,Central Bathing PLG Combi Boilers |
||
28KW Natural Gas or PLG Combi Boilers For Central Heating And Bathing
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB28-A(F4) |
|
SPECIFICATIONS |
A28F4/B28-F4 |
|
RATED INPUT POWER(KW) |
28 |
|
RATED OUTPUT POWER(KW) |
25 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/125 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13
|
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*300 |
| WEIGHT(KG) | 31.85 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

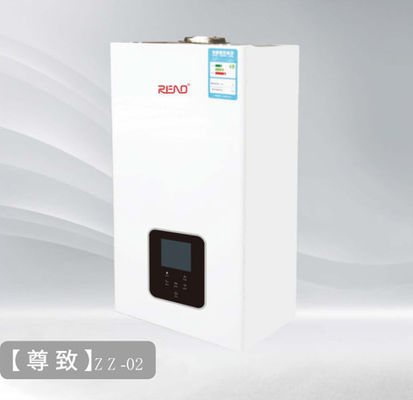

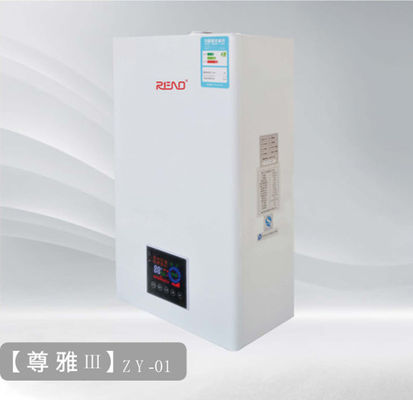

PRODUCT DISPLAY
Gas wall hanging boiler has dual functions of heating and bathing.
Gas wall hanging boiler has a powerful family central heating function, can meet the heating requirements of multi-room, each room can be set comfortable temperature according to demand, can also decide to turn off the heating in a room according to need, and can provide large flow of constant temperature hot water for family bathing, kitchen and other occasions, economic and practical.
First, the advantages of wall hanging furnace
1. Space saving wall hanging furnace is installed on the wall, does not occupy the ground space, especially suitable for small family use.
2. Energy saving and environmental protection Because the wall hanging furnace uses gas or electricity as an energy source, compared with the traditional coal-fired heating method, the wall hanging furnace is more environmentally friendly and can reduce the emissions of harmful gases such as carbon dioxide.
3. Safe and reliable wall hanging furnace adopts advanced safety protection devices, such as leakage protection, overheating protection, etc., to ensure the safety of the family.
4. Intelligent control wall hanging furnace can be remotely controlled by intelligent control system, adjust temperature, switch on and off, etc., convenient and fast.
Applicable scenarios
1. Small family Because the wall hanging furnace does not occupy the floor space, it is suitable for small family use.
2. Newly renovated houses In newly renovated houses, you can consider using a wall hanging stove as a heating method.
3. Renovation of old houses For the renovation of old houses, wall hanging furnaces can reduce the use of pipes and save installation costs.
4. Wall hanging furnaces in commercial places can be used for heating in commercial places, such as hotels, restaurants, offices, etc.
Precautions for use
1. Choose the right gas or electricity When buying a wall hanging furnace, choose the right gas or electricity according to the actual situation of the family.
2. The installation position should be reasonable. The installation position of the wall hanging furnace should be selected in a place with good ventilation and not easy to be damp.
3. Regular maintenance The wall hanging furnace needs regular maintenance, cleaning the gas pipeline and flue to ensure normal use.
4. Pay attention to safety when using the wall hanging stove, pay attention to safety, do not put flammable items nearby, to avoid safety accidents.
As a kind of energy-saving, environmentally friendly, safe and reliable, intelligent control heating equipment, wall hanging furnace is more and more favored by people. When choosing a wall hanging furnace, it is necessary to choose the appropriate gas or electricity according to the actual situation of the family, and pay attention to the installation location, regular maintenance, attention to safety and other matters. The use of the wall hanging stove can make the family more comfortable and warm, but also contribute to the cause of environmental protection.
Efficacy and use of wall hanging furnace (Advantages and application scenarios of wall hanging furnace)
With the change of weather, people's demand for heating equipment is also increasing. In this case, the wall hanging furnace has become a heating device that has attracted much attention. So, what are the advantages and application scenarios of the wall hanging furnace? This article will give a detailed introduction to the efficacy and use of the wall hanging furnace to help readers better understand the wall hanging furnace.
