Product Details:
|
| Way To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26kw | Gas Style: | NG/LPG |
| Color Shows: | White | Product Name: | Wall Hung Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displays: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90% | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | Power Out(kw): | 31.85kw |
| High Light: | LPG Wall Hung Combination Boiler,2800Pa Wall Hung Combination Boiler,2000Pa Gas Hot Water Heaters |
||

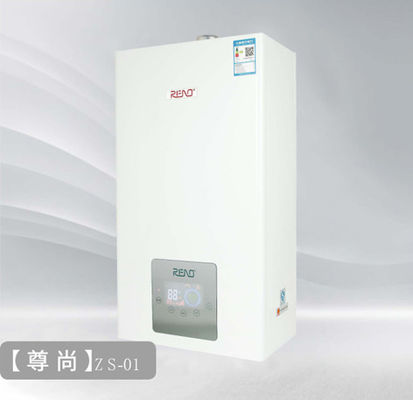

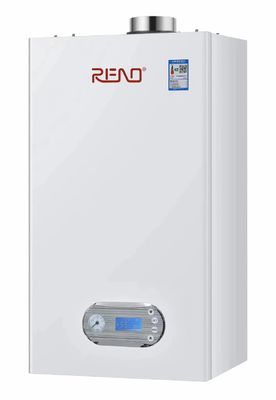

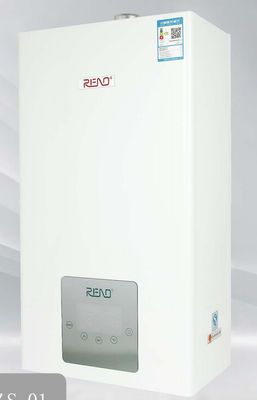

2000 Pa NG Or 2800Pa LPG Gas Hot Wall Hung Combination Boiler Stainless Steel
High-performance to suit everyone's pocket
The reduced dimensions and the clean aesthetic line of boilers make every installation option available to you:
Attractive price,
Boiler delivered fully assembled, easy to install and ready to use.
Ultra-compact to fit in anywhere in your home.
24 kW output, ideal for heating and domestic hot water alike.
3-star domestic hot water
Every model can be used to produce domestic hot water, offering you 3-star comfort, in line with the EN 13.203 standard.
Quite simply efficient: temperature control to the degree.
Non-programmable thermostat used to adjust the set point temperature directly from the room of your choice.
Weekly programmed thermostat used to define the set point temperatures for various time slots in advance.
Programmable thermostat with outside sensor allowing energy savings of up to 25%.
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26-A(F3) |
|
SPECIFICATIONS |
A26-F3/B26-F3 |
|
RATED INPUT POWER(KW) |
26kw |
|
RATED OUTPUT POWER(KW) |
23.5kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
12 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 31.85kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
Combined gas heating hot water furnace, suitable for residential communities, hotels, office buildings, hospitals, schools and other enterprises and institutions. Furnace body The furnace body is provided with a water collecting pipe, a temperature detection probe is arranged above the water collecting pipe, and a water inlet branch pipe and an outlet branch pipe are arranged below, and a heating unit is arranged between the two pipes, and a collecting pipe is arranged at the bottom of the furnace. Supply gas to the heating unit. Pulse ignition, water and gas induction linkage, built-in controller to control ignition, combustion, heating water temperature, water pump start and stop. And the heating hot water stove has water shortage protection, anti-overheating protection, accidental flame out protection and other functions.
The furnace body has a collection pipe, inlet branch pipe, outlet branch pipe, circulating water pump, isolating water valve, collecting pipe, gas branch pipe, isolating gas valve, solenoid valve. Combustion first, its structural characteristics are: stove below the collecting pipe, the collecting pipe on the collecting pipe branch, the stove above the collecting pipe, the water inlet branch pipe and the water outlet branch pipe below the collecting pipe. There is a heating unit in parallel between the roads. The heating unit is composed of water passage, air passage and combustion chamber. The inlet branch is connected with the circulating water pump through the isolation water valve, and the circulating water pump is connected with the water diversion device, and the water diversion device is connected with the heat exchanger. The heat exchanger is connected to the water branch by isolating the water valve. The combustion chamber is located below the heat exchanger. The lower part of the combustion chamber is provided with a combustion head, the combustion head is provided with a pulse ignition needle and ignition needle, and the bottom is provided with a solenoid valve.
