Product Details:
|
| Heat Power (KW): | 20/24/32/42KW OPTIONAL | Gas Style: | NG/LPG |
|---|---|---|---|
| Surface Color: | WHITE OPTIONAL | Way To Install: | Mounted On The Wall |
| Name: | USE NG/LPG WALL HUNG BOILER OR HEATER | Covering Material: | Stainless Steel Or Metal |
| Gas Pressure(pa): | NG2000pa/LPG2800pa | Reveal: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Restaurant Gas Combi Boilers,Heating LPG Gas Combi Boilers,Combi Wall Hung Boilers |
||

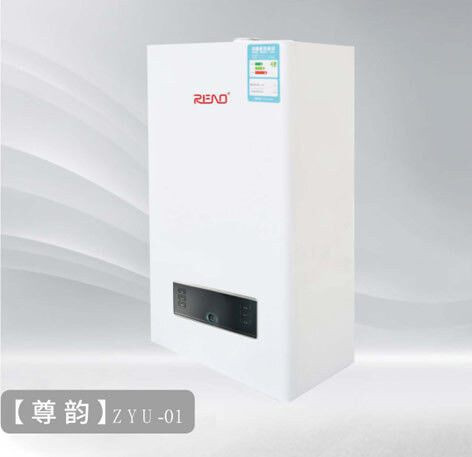

Heating And Hot Water Supply Combi Boilers Wall Mounted Gas Boiler For Domestic Restaurant
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
|
SPECIFICATIONS |
A20-40-F3/B20-40-F3 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
18-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODUCT DISPLAY
1,The touch screen operation
2,Top international accessories
3,Floor heating and radiator dual mode
4,First level energy efficiency,more energy-saving
5,21 kinds of safety protection measures
6,Step-less frequency conversion fan intelligent computer control system
7,Imported CPU
8,Ultra-quiet operation and more comfortable
9,Constant temperature and efficient
11,Built-in temperature controller,7 days 24 hours timing editing function
12,Three-speed self-exhaust pumps,effectively improve the system efficiency
13,Imported chip,microcomputer control
14, 6 pipes brazing combined heat ex-changer
15,Digital display,more intuitive
16,Excellent instant heat type mode
17,A flexible,easy installation,cover an area of a small area
18,Fault self-diagnosis function,convenient maintenance
19,Thermal efficiency can reach 94%,low carbon environmental protection
20,Unique intelligent fault operation, improve the operation of the product
21,Unique energy-saving design,save electricity above 30%
22,The main parts adopt the world first-class brand,product performance is more outstanding.
The furnace body has a collection pipe, inlet branch pipe, outlet branch pipe, circulating water pump, isolating water valve, collecting pipe, gas branch pipe, isolating gas valve, solenoid valve. Combustion first, its structural characteristics are: stove below the collecting pipe, the collecting pipe on the collecting pipe branch, the stove above the collecting pipe, the water inlet branch pipe and the water outlet branch pipe below the collecting pipe. There is a heating unit in parallel between the roads. The heating unit is composed of water passage, air passage and combustion chamber. The inlet branch is connected with the circulating water pump through the isolation water valve, and the circulating water pump is connected with the water diversion device, and the water diversion device is connected with the heat exchanger. The heat exchanger is connected to the water branch by isolating the water valve. The combustion chamber is located below the heat exchanger. The lower part of the combustion chamber is provided with a combustion head, the combustion head is provided with a pulse ignition needle and ignition needle, and the bottom is provided with a solenoid valve.
The hot water heater works by adjusting the knob on the controller to set the temperature, ranging from 25°C to 80°C. Water is then injected into the system until the collector, inlet branch, outlet branch and heat exchanger are filled with water and the water pressure is maintained at about 1kg. Open the isolating water valve and isolating air valve, turn on the power and start the water pump. After the pump runs, water flow sensing device 5 action, high voltage pulse igniter linkage.
