Product Details:
|
| Way To Install: | Wall Mounted | Power (KW): | 28-32kw |
|---|---|---|---|
| Gas Style: | NG/LPG | Color: | WHITE |
| Product Name: | Wall Hung Gas Boiler | Gas Pressure(pa): | 2000/2800pa |
| Display: | LED Displayer Optional | Heat Efficiency(%): | ≥90% |
| Covering Material: | Stainless Steel | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | Power Out(kw): | 25-28.8kw |
| High Light: | Tankless Gas Hot Water Heater,SS Gas Water Heater 32kw,2800pa Hot Water Heater |
||
Natural Gas Instant Hot Water Heater Gas Water Heater Tankless
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB28-32-A(C3) |
|
SPECIFICATIONS |
A28-32-TG1/BH1 |
|
RATED INPUT POWER(KW) |
28-32kw |
|
RATED OUTPUT POWER(KW) |
25-28.8kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
11.5-13 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 37-38kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

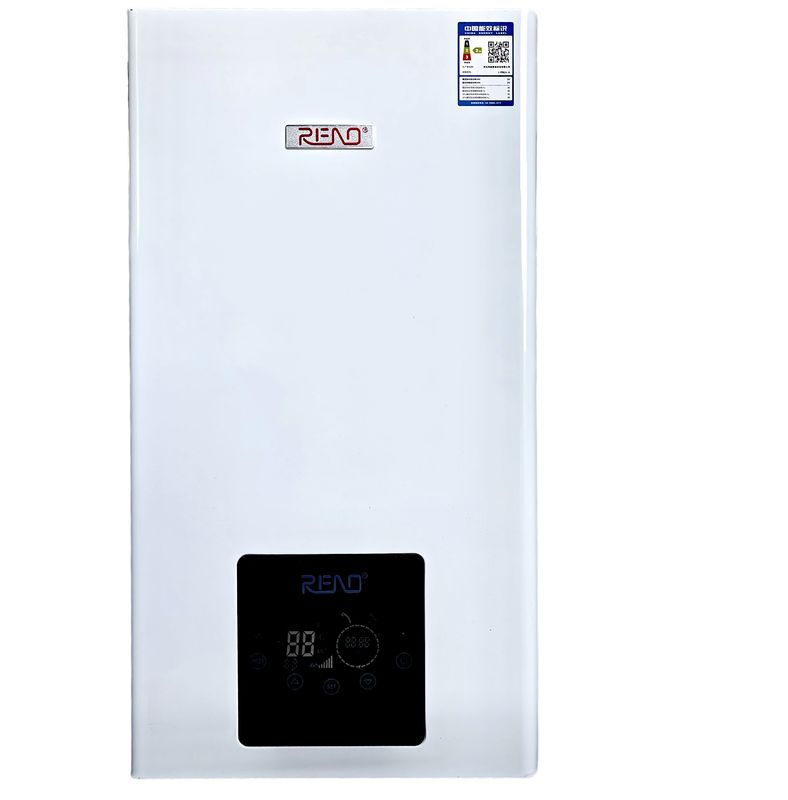

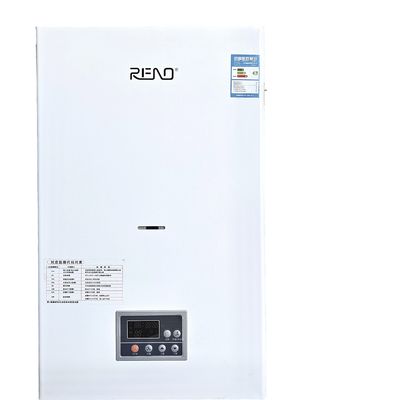

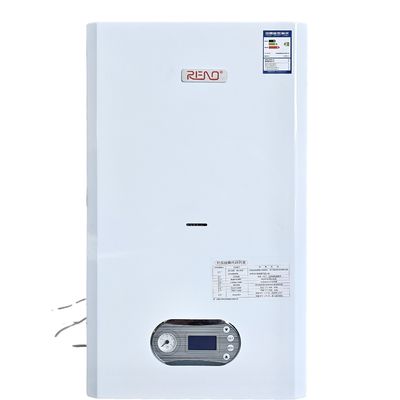

PRODUCT DISPLAY
Function of temperature sensor: The temperature sensor of gas wall hanging boiler is divided into heating senses and hot water temperature sensor, it senses the running temperature of hot water and heating, and can obtain very accurate temperature, so that the application of wall hanging boiler is more convenient and accurate.
Function of expansion tank: It is used to absorb and compensate the expansion and shrinkage of water in the system, also used as system water supply.
The function of the main control circuit board: it is used to control the start, stop and constant temperature of the HVAC equipment.
