Product Details:
|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26/32/40 | Gas Style: | NG/LPG |
| Color Shows: | WHITE | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Gas Heating And Bathing Boilers,32KW Natural Gas Combi Boilers |
||
Natural Gas Heating And Bathing Boilers Safe Comfortable Convenient and Environmentally Friendly
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26/32/40-A(M1) |
|
SPECIFICATIONS |
A26/32/40-M1/B26/32/40-M1 |
|
RATED INPUT POWER(KW) |
26/32/40kw |
|
RATED OUTPUT POWER(KW) |
23.5/28.8/36kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10/13/16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33/38/41kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

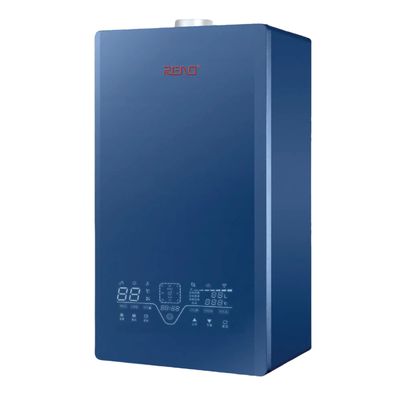

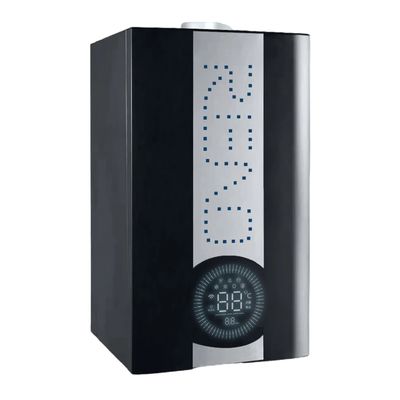

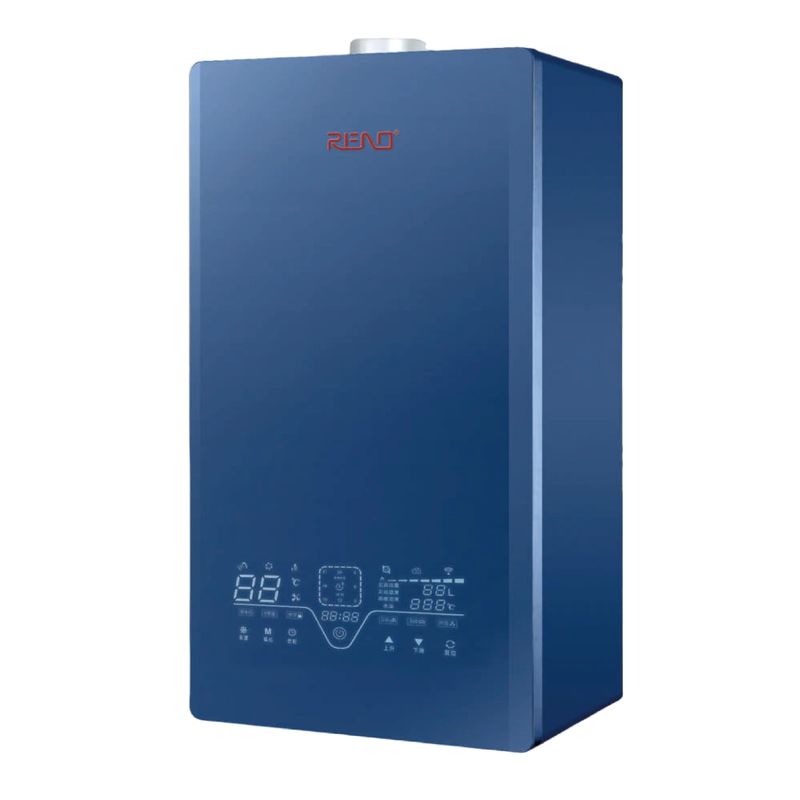

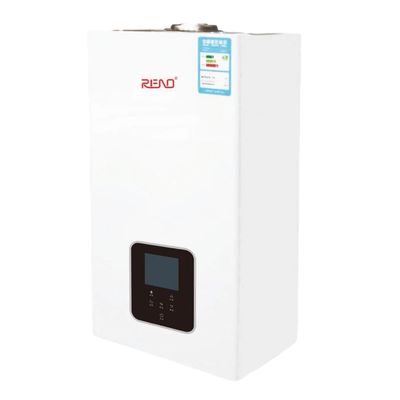

PRODUCT DISPLAY
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch. The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.
Anti-lock braking After circulating water pump does not run for a long time, it is easy to happen lock braking which shows that the the water pump does not run after being energized.
