Product Details:
|
| Way To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26kw | Gas Style: | NG/LPG |
| Color Shows: | Brown | Product Name: | Wall Hung Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displays: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90% | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | Power Out(kw): | 23.5kw |
| High Light: | Gas Hot Water Heaters 2000pa,ISO9001 Gas Hot Water Heaters |
||

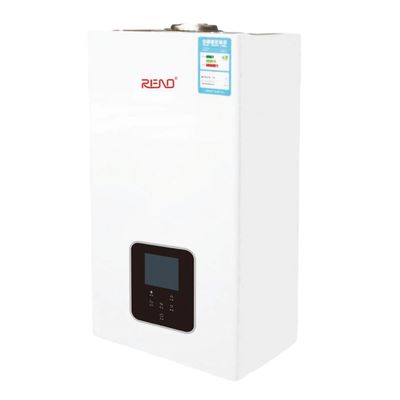

Compact and Affordable Gas Hot Water Heaters for Easy Installation
High-performance to suit everyone's pocket
The reduced dimensions and the clean aesthetic line of boilers make every installation option available to you:
Attractive price,
Boiler delivered fully assembled, easy to install and ready to use.
Ultra-compact to fit in anywhere in your home.
24 kW output, ideal for heating and domestic hot water alike.
3-star domestic hot water
Every model can be used to produce domestic hot water, offering you 3-star comfort, in line with the EN 13.203 standard.
Quite simply efficient: temperature control to the degree.
Non-programmable thermostat used to adjust the set point temperature directly from the room of your choice.
Weekly programmed thermostat used to define the set point temperatures for various time slots in advance.
Programmable thermostat with outside sensor allowing energy savings of up to 25%.
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26-A(C3) |
|
SPECIFICATIONS |
A26-TG1/BH1 |
|
RATED INPUT POWER(KW) |
26kw |
|
RATED OUTPUT POWER(KW) |
23.5kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free

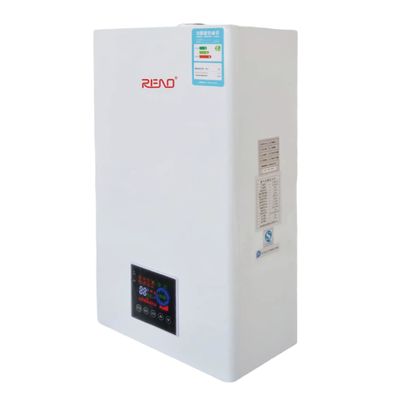

DISPLAY
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the Venturi tube of the burner, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
The role of the main heat changer: the main heat changer is the part of heat exchange between the flue gas which is produced by gas combustion and the water in the system. His appearance is thin fin, thickness and distance are set exactly as required. In the case of small boiler size requirements, to ensure sufficient heat exchange area and heat exchange efficiency. The surface of the heat changer has been treated with efficient anti-corrosion , which ensures the service life of the system.
