Product Details:
|
| How To Install: | Hung | Power (KW): | 26/32/40 |
|---|---|---|---|
| Gas Style: | NG/LPG | Color Shows: | BLUE |
| Housing Material: | Stainless Steel | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Wall Hung Gas Combi Boilers,Gas Combi Boilers 32kw |
||
Gas Fired Wall Hung For Heating And Bathing Copper Casing Style Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26/32/40-A(M1) |
|
SPECIFICATIONS |
A26/32/40-M1/B26/32/40-M1 |
|
RATED INPUT POWER(KW) |
26/32/40kw |
|
RATED OUTPUT POWER(KW) |
23.5/28.8/36kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10/13/16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33/38/41kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

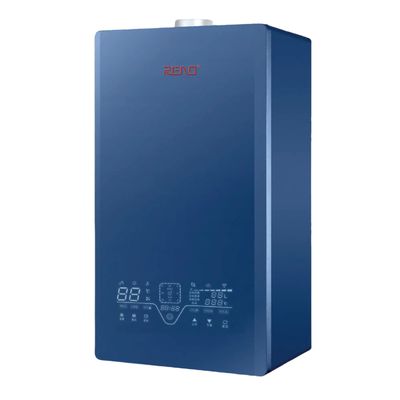

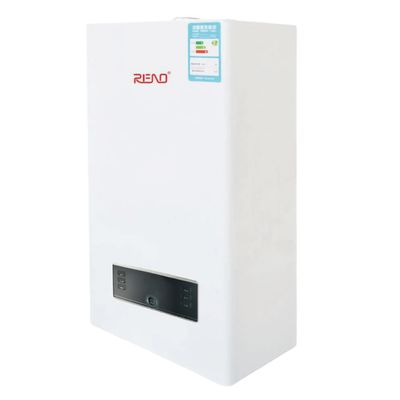

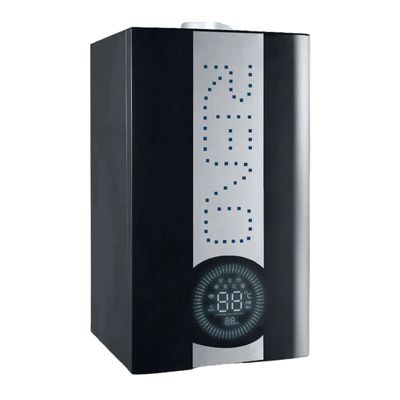

PRODUCT DISPLAY
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch. The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the Venturi tube of the burner, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
