Product Details:
|
| Installation: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (w): | 32000 | Gas Type: | NG/LPG |

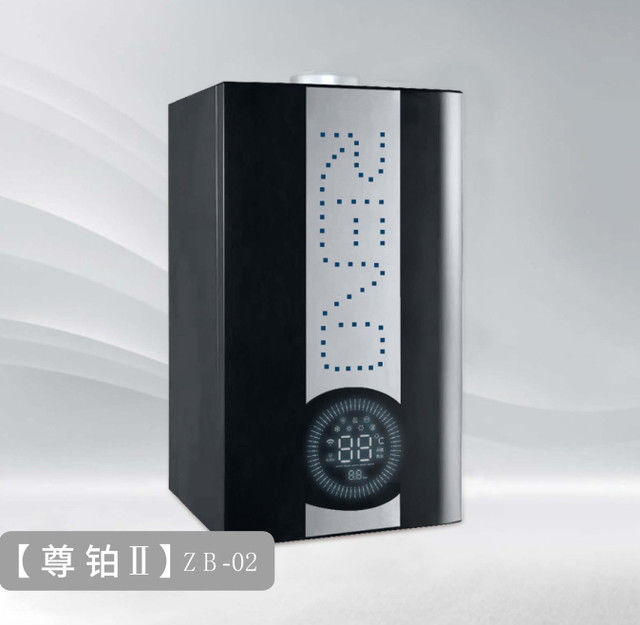

| Color: | BLACK | Product Name: | ZB-02 |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥108 | ||
| High Light: | Home Gas Condensing Boiler,Gas Condensing Boiler Black,LPG Black Wall Hung Combi Boiler |
||
WALL HUNG COMBI BOILER GAS CONDENSING COMBI BOILER , COMBI GAS BOILER FOR HOT WATER HOME GAS BOILER
GAS CONDENSING BOILER INSTRUCTIONS
1. Comfort
Ultra-quiet operation•more comfortable
2. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS CONDENSING BOILER
| MODEL | LLGBQ32-JK |
|
SPECIFICATIONS |
Q32-JK |
|
RATED INPUT POWER(KW) |
32 |
|
RATED OUTPUT POWER(KW) |
34.5 |
|
THERMAL EFFICIENCY(%) |
≥108 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/50/230 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-80 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13.6 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.5-6 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 40 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

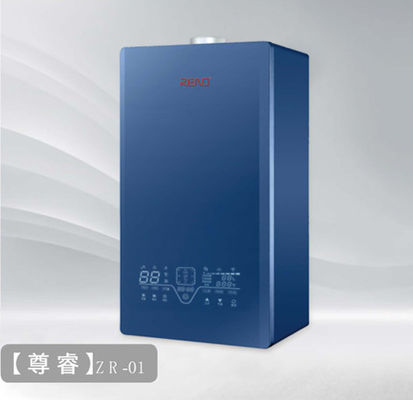

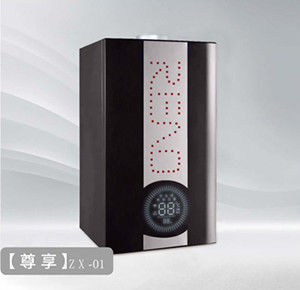

PRODECT DISPLAY
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory.
It is a company dedicated to research and development, production of high-grade hanging wall hanging furnace, the electric heating furnace, biomass cainuanlu, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
