Product Details:
|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 24kw | Gas Style: | NG/LPG |
| Color Shows: | WHITE | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥108 | ||
| High Light: | Adaptive Control Gas Condensing Boiler,Gas Condensing Boiler Wall Hung,Wall Hung Gas Hot Water Boiler |
||
NEW FANSHION ADAPTIVE CONTROL WALL HUNG GAS HOT WATER BOILER AND USE IMPORTED WILO OR GRUNDFOS BRAN PUMPS
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | LLGBQ24-JK |
|
SPECIFICATIONS |
Q24-JK |
|
RATED INPUT POWER(KW) |
24kw |
|
RATED OUTPUT POWER(KW) |
25.9kw |
|
HEAT EFFICIENCY(%) |
≥108% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
9.4 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 40kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

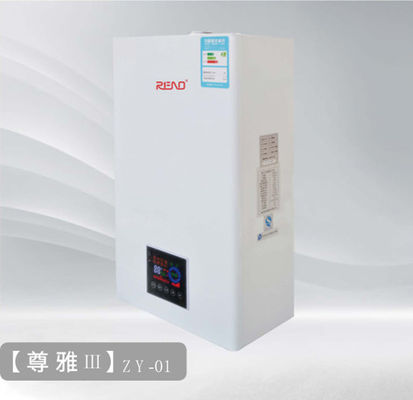

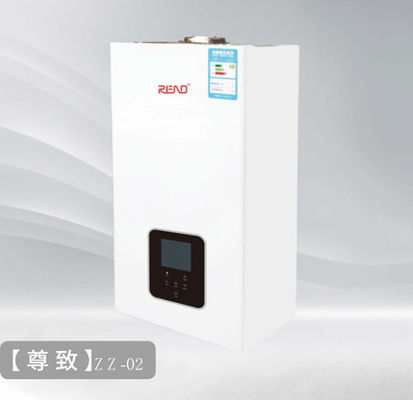

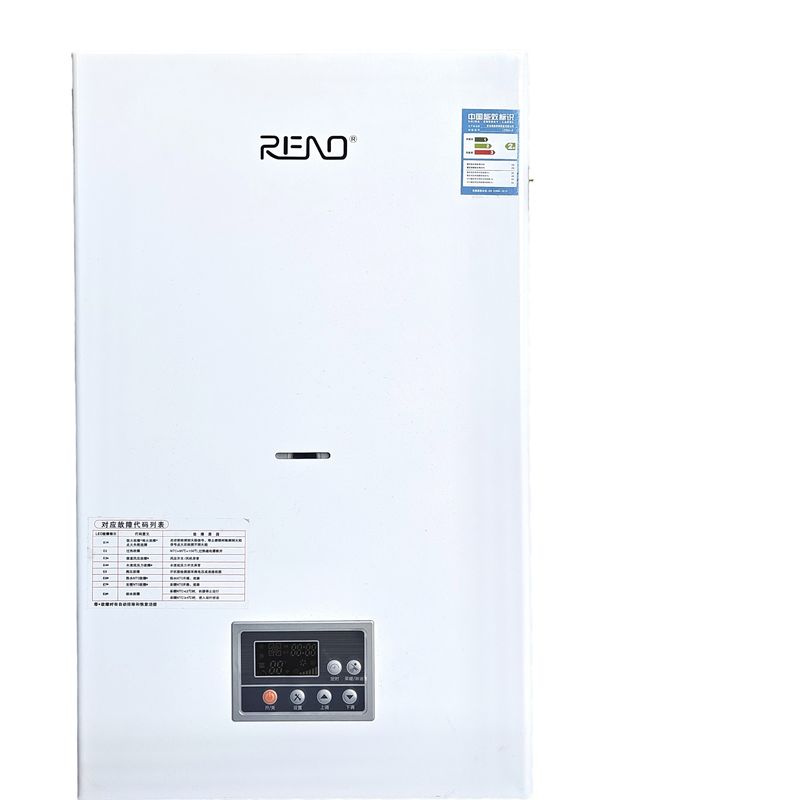

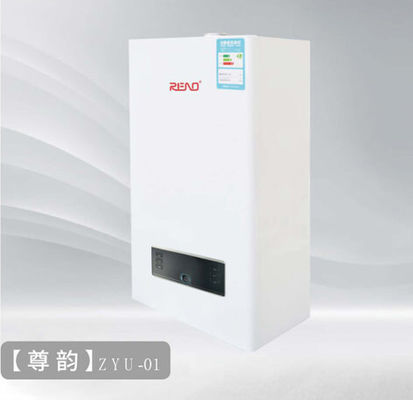

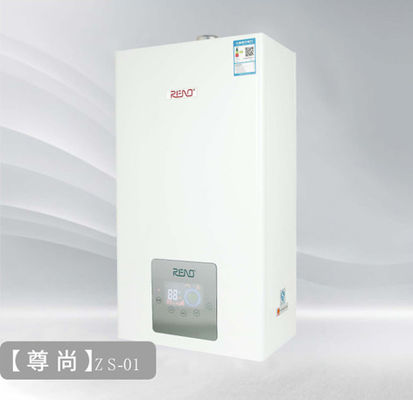

PRODECT DISPLAY
Full premixed condensation technology is a way of pre-mixing air and gas to achieve the optimal ratio of combustion, and then recovering part of the heat energy (latent heat of water vapor) from the flue gas generated by combustion.
The advantages of fully premixed condensing wall hanging furnace are:
1. The fully premixed condensing gas wall - mounted furnace has higher thermal efficiency and lower CO and NOX content. The test shows that when the fully premixed wall hanging furnace burns natural gas, the smoke exhaust temperature is 80℃ lower than the ordinary gas wall hanging furnace, and the thermal efficiency is more than 15% higher than the ordinary wall hanging furnace, which is more energy saving.
2. The inverted combustion mode of ceramic plate burner at the top can effectively avoid the influence of condensed water falling on the burner, gas combustion and gas heat transfer.
3. The finned tube welded aluminum alloy heat exchanger is used in condensing wall hanging furnace. Its performance can meet the requirements. Its manufacturing cost is lower than that of stainless steel heat exchanger and cast aluminum heat exchanger.
