Product Details:
|
| Installs Way: | HUNG On The Wall | Case Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 20/24/26/28/32/40KW OPTIONAL | Gas Style: | NG/LPG |
| Case Color: | WHITE OPTIONAL | Name: | USE NG/LPG WALL HUNG BOILER OR HEATER |
| Gas Pressure(pa): | NG2000pa/LPG2800pa | Showing: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Ng Lpg High Efficiency Condensing Boiler,Condensing Oil Fired Boilers wall hung,Stainless Steel Wall Hung Water Heater |
||
HIGH QUALITY WALL MOUNTED NG/LPG GAS DUAL FUNCTION HOT WATER BOILER WITH STAINLESS STEEL OF THE SHELL
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
|
SPECIFICATIONS |
A20-40-F3/B20-40-F3 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
18-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

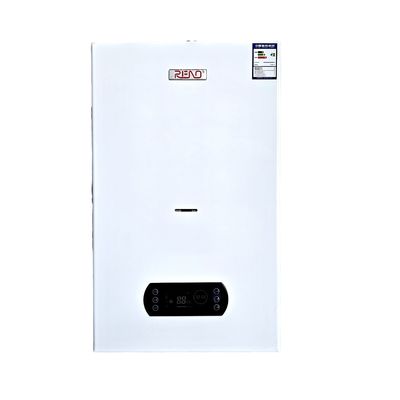

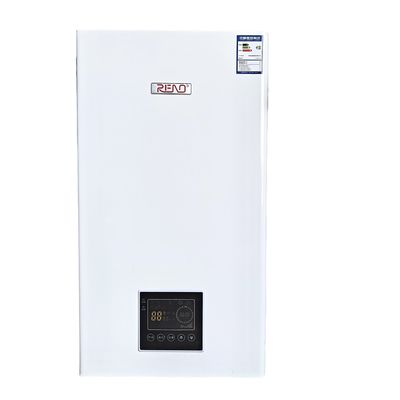

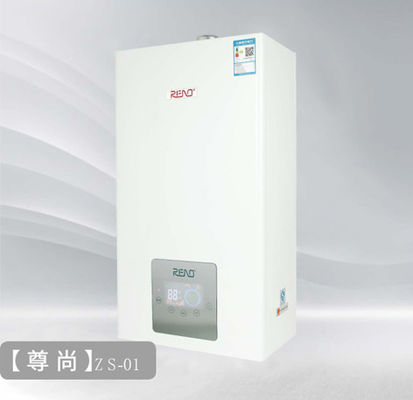

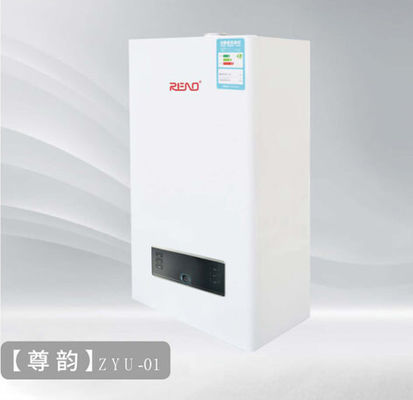

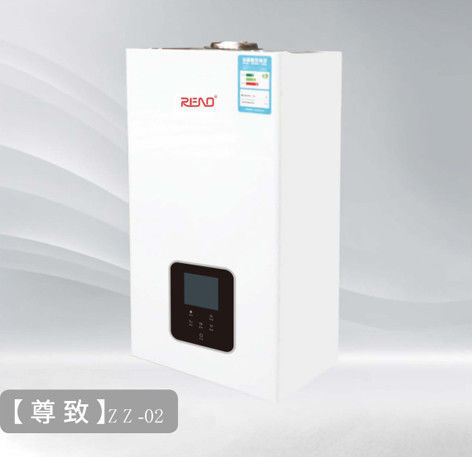

PRODUCT DISPLAY
The advantages of fully premixed condensing wall hanging furnace are:
1. The fully premixed condensing gas wall - mounted furnace has higher thermal efficiency and lower CO and NOX content. The test shows that when the fully premixed wall hanging furnace burns natural gas, the smoke exhaust temperature is 80℃ lower than the ordinary gas wall hanging furnace, and the thermal efficiency is more than 15% higher than the ordinary wall hanging furnace, which is more energy saving.
2. The inverted combustion mode of ceramic plate burner at the top can effectively avoid the influence of condensed water falling on the burner, gas combustion and gas heat transfer.
3. The finned tube welded aluminum alloy heat exchanger is used in condensing wall hanging furnace. Its performance can meet the requirements. Its manufacturing cost is lower than that of stainless steel heat exchanger and cast aluminum heat exchanger.
Full premixed condensation technology is a way of pre-mixing air and gas to achieve the optimal ratio of combustion, and then recovering part of the heat energy (latent heat of water vapor) from the flue gas generated by combustion.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
