Product Details:
|
| How To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 32kw | Gas Style: | NG/LPG |
| Color Shows: | Brown | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥108% | ||
| High Light: | Wall Hung Gas Condensing Boiler 32kw,Natural Gas Tankless Boiler 32kw,Energy Efficiency Natural Gas Tankless Boiler |
||
Wall Hung Gas Hot Water Boiler First Level Energy Efficiency And Use Imported Wilo Or Grundfos Bran Pumps
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | LLGBQ32-JK |
|
SPECIFICATIONS |
Q32-JK |
|
RATED INPUT POWER(KW) |
32kw |
|
RATED OUTPUT POWER(KW) |
34.5kw |
|
HEAT EFFICIENCY(%) |
≥108% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13.6 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 45kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

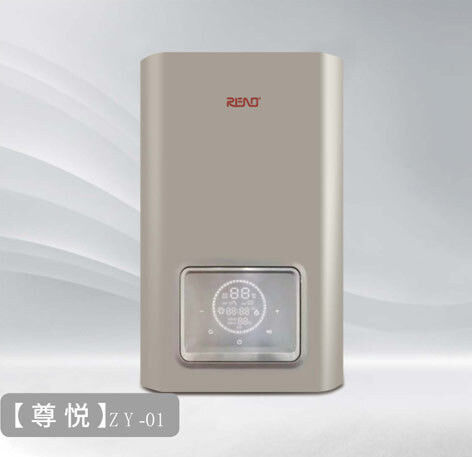

PRODECT DISPLAY
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
