20kw 40kw Natural Gas Or LPG Combination Boiler Wall Mounted Boiler

20kw 40kw Natural Gas Or LPG Combination Boiler Wall Mounted Boiler

GAS WALL HANGING BOILER INSTRUCTIONS

1. Safe and Reliable

With 21 kinds of safe protection•Low failure rate

2. Comfort

Ultra-quiet operation•more comfortable

3. Convenience

Touch control•more precise

4. Environmental protection

Eenrgy saving and environmental protection•Follow the trend

5. After sale

7*24 after-sales service,worry free

TECHNICAL DATA OF GAS WALL HANGING  BOILER

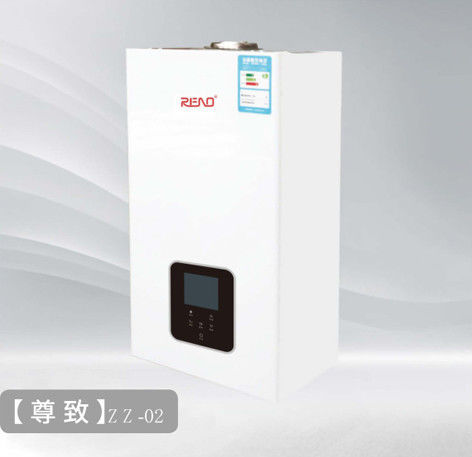

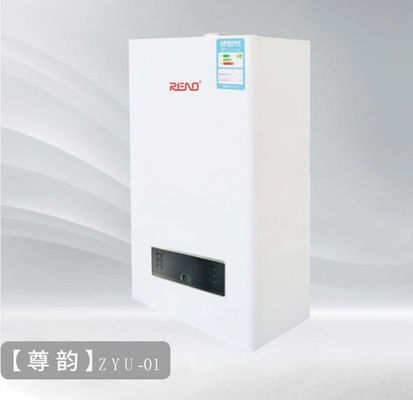

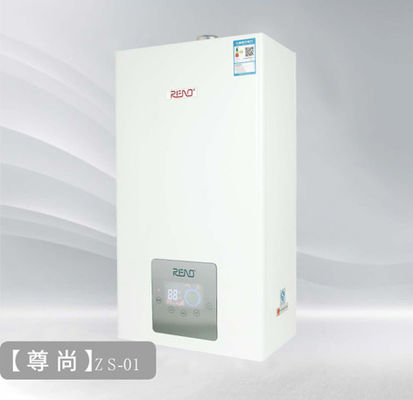

PRODUCT DISPLAY

1,The touch screen operation

2,Top international accessories

3,Floor heating and radiator dual mode

4,First level energy efficiency,more energy-saving

5,21 kinds of safety protection measures

6,Step-less frequency conversion fan intelligent computer control system

7,Imported CPU

8,Ultra-quiet operation and more comfortable

9,Constant temperature and efficient

11,Built-in temperature controller,7 days 24 hours timing editing function

12,Three-speed self-exhaust pumps,effectively improve the system efficiency

13,Imported chip,microcomputer control

14, 6 pipes brazing combined heat ex-changer

15,Digital display,more intuitive

16,Excellent instant heat type mode

17,A flexible,easy installation,cover an area of a small area

18,Fault self-diagnosis function,convenient maintenance

19,Thermal efficiency can reach 94%,low carbon environmental protection

20,Unique intelligent fault operation, improve the operation of the product

21,Unique energy-saving design,save electricity above 30%

22,The main parts adopt the world first-class brand,product performance is more outstanding

Combined gas heating hot water furnace, suitable for residential communities, hotels, office buildings, hospitals, schools and other enterprises and institutions. Furnace body The furnace body is provided with a water collecting pipe, a temperature detection probe is arranged above the water collecting pipe, and a water inlet branch pipe and an outlet branch pipe are arranged below, and a heating unit is arranged between the two pipes, and a collecting pipe is arranged at the bottom of the furnace. Supply gas to the heating unit. Pulse ignition, water and gas induction linkage, built-in controller to control ignition, combustion, heating water temperature, water pump start and stop. And the heating hot water stove has water shortage protection, anti-overheating protection, accidental flame out protection and other functions.

The furnace body has a collection pipe, inlet branch pipe, outlet branch pipe, circulating water pump, isolating water valve, collecting pipe, gas branch pipe, isolating gas valve, solenoid valve. Combustion first, its structural characteristics are: stove below the collecting pipe, the collecting pipe on the collecting pipe branch, the stove above the collecting pipe, the water inlet branch pipe and the water outlet branch pipe below the collecting pipe. There is a heating unit in parallel between the roads. The heating unit is composed of water passage, air passage and combustion chamber. The inlet branch is connected with the circulating water pump through the isolation water valve, and the circulating water pump is connected with the water diversion device, and the water diversion device is connected with the heat exchanger. The heat exchanger is connected to the water branch by isolating the water valve. The combustion chamber is located below the heat exchanger. The lower part of the combustion chamber is provided with a combustion head, the combustion head is provided with a pulse ignition needle and ignition needle, and the bottom is provided with a solenoid valve.

Ignition control: The rotation of the water pump is linked with the water flow sensing device, that is, the movement of the water flow signal is transmitted to the controller, the controller completes the ignition, fire detection and opening and closing of the solenoid valve.

Anti-overheating protection: It is completed by the overheating protection probe 19 installed above the outlet of the heat exchanger. The sensor element of the protection probe is a bimetallic sheet, which is normally closed and normally open in case of failure. If probe 19 detects that heat exchanger 4 has reached a high temperature of 90℃, the superheat protection probe 19 will operate, cut off the valve and stop heating to prevent the heat exchanger from being destroyed. Accidental flameout protection: Flame detection.
