Product Details:
|
| Installation: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 20/24/26/32/40 | Gas Type: | NG/LPG |
| Color: | WHITE | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | LPG Wall Hung Boilers 40kw,Tankless LPG Wall Hung Boilers,LPG Water Heater Boiler |
||
Natural Gas Or LPG Wall Hung Boilers 40kw Combi Tankless Water Heater Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB20/24/26/32/40-A(M1) |
|
SPECIFICATIONS |
A20/24/26/32/40-M1/B20/24/26/32/40-M1 |
|
RATED INPUT POWER(KW) |
22/24/26/32/40kw |
|
RATED OUTPUT POWER(KW) |
18/21.6/23.5/28.8/36kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8/9.5/10/13/16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30/33/33/38/41kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

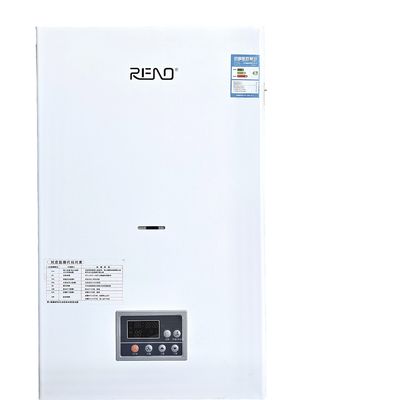

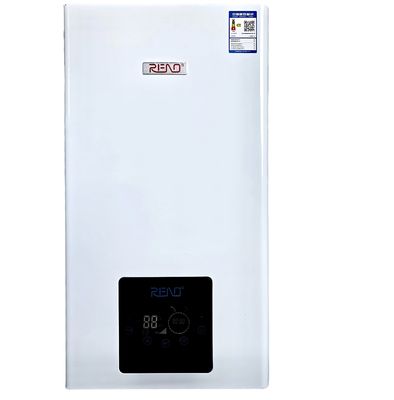

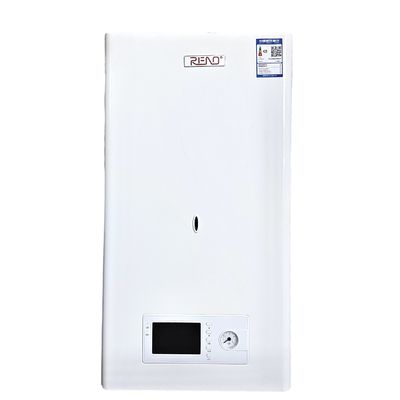

PRODUCT DISPLAY
1,The touch screen operation
2,Top international accessories
3,Floor heating and radiator dual mode
4,First level energy efficiency,more energy-saving
5,21 kinds of safety protection measures
6,Step-less frequency conversion fan intelligent computer control system
7,Imported CPU
8,Ultra-quiet operation and more comfortable
9,Constant temperature and efficient
11,Built-in temperature controller,7 days 24 hours timing editing function
12,Three-speed self-exhaust pumps,effectively improve the system efficiency
13,Imported chip,microcomputer control
14, 6 pipes brazing combined heat ex-changer
15,Digital display,more intuitive
16,Excellent instant heat type mode
17,A flexible,easy installation,cover an area of a small area
18,Fault self-diagnosis function,convenient maintenance
19,Thermal efficiency can reach 94%,low carbon environmental protection
20,Unique intelligent fault operation, improve the operation of the product
21,Unique energy-saving design,save electricity above 30%
22,The main parts adopt the world first-class brand,product performance is more outstanding
