Product Details:
|
| Way To Install: | Wall Mounted | Shell Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 32kw | Gas Style: | NG/LPG |
| Color Shows: | WHITE | Product Name: | Wall Hung Gas Boiler |
| Gas Pressure(pa): | 2000/2800pa | Displays: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90% | Protection Measures: | 21 Kinds Of Protection Measures |
| Dual Funtions: | Heating And Bathing | Power Out(kw): | 28.8kw |
| High Light: | 32kw Wall Hanging Gas Furnace,Wall Hanging Gas Furnace 2800pa,OHSAS Wall Mounted Gas Hot Water Boiler |
||

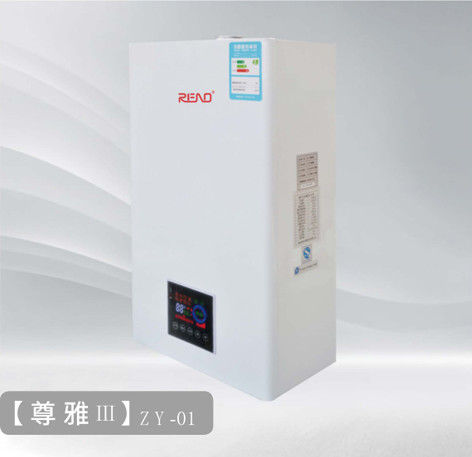

MOUNTED ON WALL GAS WATER BOILER CONSTANT TEMPERATURE USE IMPORTED "WILO" OR "GRUNDFOS" BRAN PUMPS
GAS WALL MOUNTED BOILER INSTRUCTIONS
1. Nine protections and comprehensive protection: multiple protection technology combinations, produced in accordance with European safety standards, constitute a protection system, create comprehensive protection with all our heart, and strive to let you enjoy bathing with peace of mind
2. One machine for heating/bathing and multi-purpose: it can be used in combination with floor heating radiators to meet the needs of heating and domestic hot water, bid farewell to the stacking of multiple machines, practical and space-saving
3. The temperature can be set by yourself: when the collective heating temperature is low, it feels too cold, and when the
temperature is high, it feels too hot. The room temperature of the heating furnace can be adjusted to provide comfortable
heating in winter
4. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
5. Comfort
Ultra-quiet operation•more comfortable
6. Convenience
Touch control•more precise
7. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
8. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB32-A(C3) |
|
SPECIFICATIONS |
A32-TG1/BH1 |
|
RATED INPUT POWER(KW) |
32kw |
|
RATED OUTPUT POWER(KW) |
28.8kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
13 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 38kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODECT DISPLAY
