Product Details:
|
| CPU: | Imported | Color: | Pale Green |
|---|---|---|---|
| Gas Type: | NG/LPG | Gas Pressure(pa): | 2000/2800 |
| CONTROL SYSTEM: | INTELLIGENT STYLE | Display: | LED Displayer Optional |
| ENERGY EFFICIENCY: | First Level | Covering Material: | Stainless Steel |
| Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure | Power (w): | 40KW |
| Product Name: | Wall Mount Gas Boiler | Installation: | Wall Mounted |
| Thermal Efficiency(%): | ≥90 | Main Component: | Imported |
| High Light: | 40kw Current Wall Hanging Gas Furnace,Gas Wall Mounted Boiler 40kw Current,Gas Wall Mounted Boiler Pale Green |
||

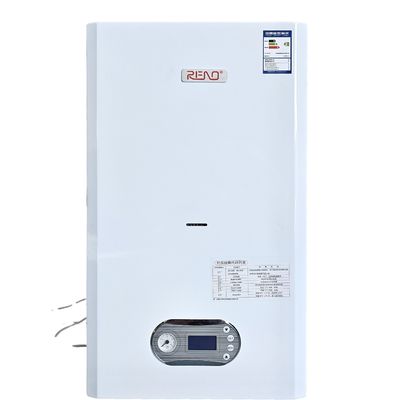

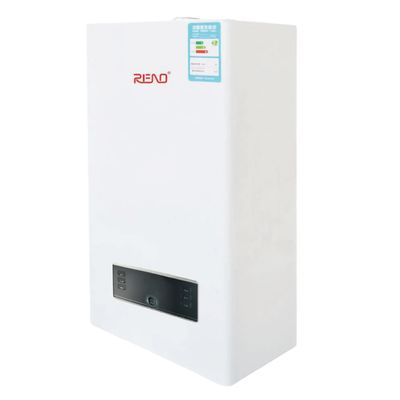

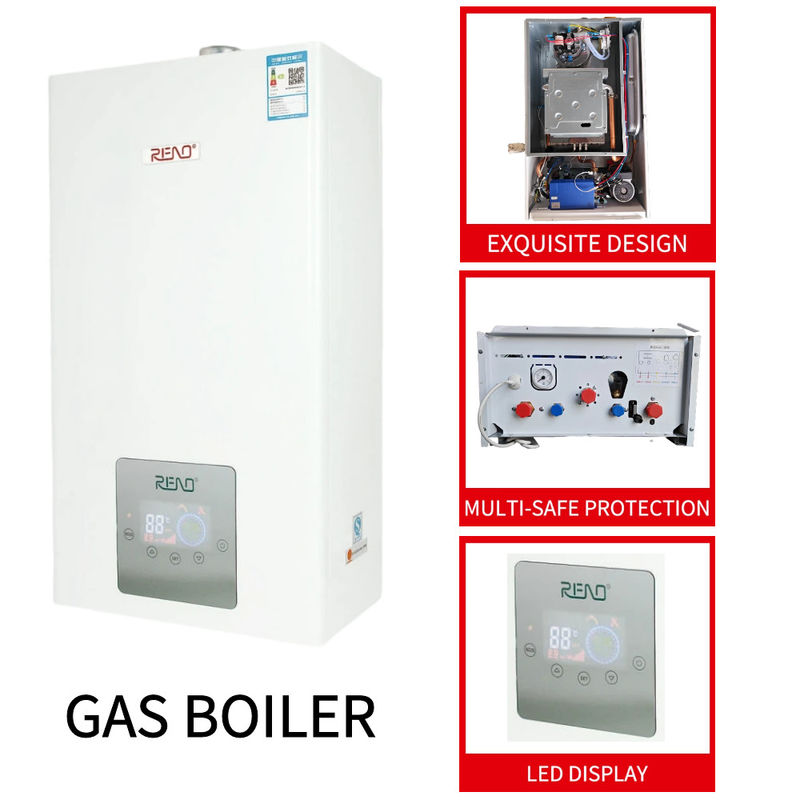

40kw Current Gas Wall Mounted Boiler Pale Green Shell Top Component Heating And Bath Function
FEATURES:
Wall-mounted gas boiler for heating with the possibility of variable connection of domestic hot water tank. The boiler can also operate with a minimum output of 20 – 40 kW which is a great advantage for family houses.
DHW heating in external storage tank
Possibility of connecting the boiler to the Internet and equithermal regulation
High modulation ratio 1:10
ICS (intelligent combustion system)
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
