Product Details:
|
| Style Of Frequency Conversion: | Stepless | Display: | LED Displayer Optional |
|---|---|---|---|
| Housing Material: | Stainless Steel | Gas Type: | NG/LPG |
| Main Component: | Top Quality | Installation: | Wall Mounted |
| Color: | White | Gas Pressure(pa): | 2000/2800 |
| Power (w): | 20-40KW | ENERGY EFFICIENCY: | First Level |
| Thermal Efficiency(%): | ≥90 | Protection Mearure Kind: | 21 Kinds Of Security Protection Measure |
| Product Name: | Wall Mount Gas Boiler | CONTROL SYSTEM: | Intelligent Style |
| High Light: | 40KW Hot Water Heat Boiler,Gas Wall Hung Boiler Top Component 40KW,White Shell Gas Wall Hung Boiler 3C |
||

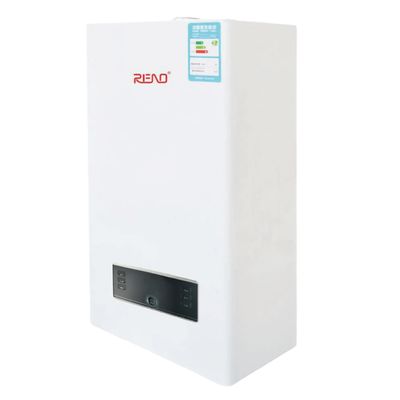

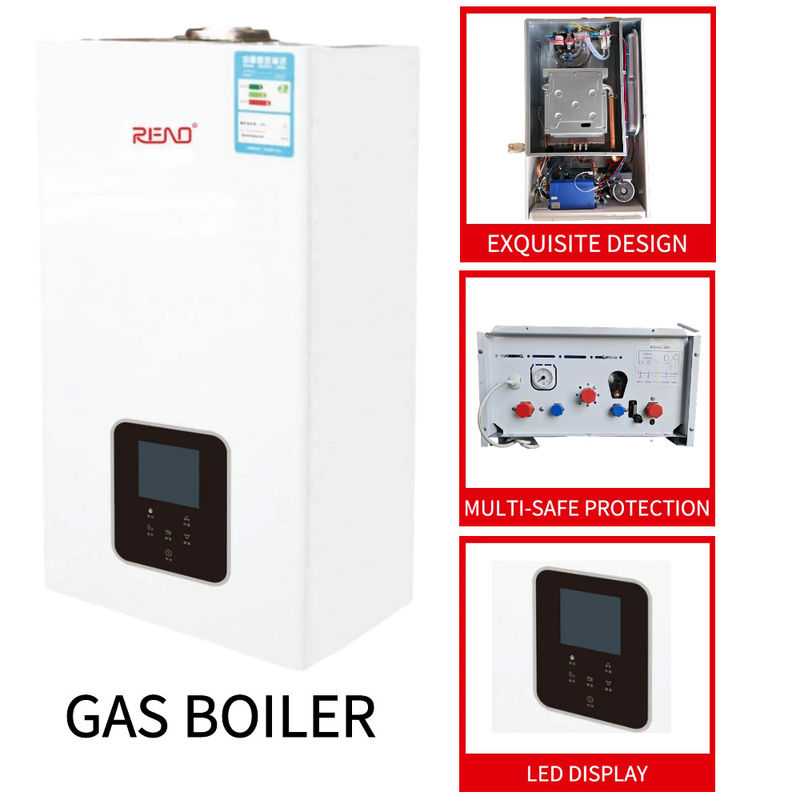

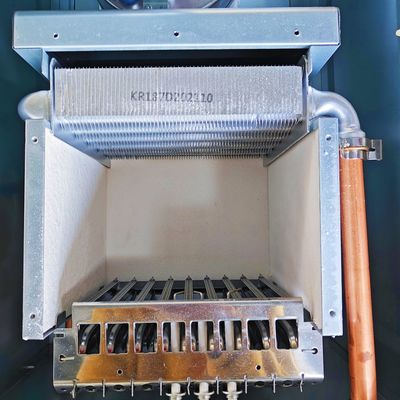

Hot Water Gas Wall Hung Boiler White Shell Top Component 6 Pipe Brazing Component Heat Exchanger Dual Function
Introduction to gas wall hanging furnace:Gas wall furnace originated in Europe, has a history of hundreds of years, now, because of the European blood wall furnace has a long history of development, mature technology, good quality and become the market favorite. The full name of "wall hanging furnace" is: "gas wall hanging heating furnace". It and gas fast water heater are rapid heating equipment without hot water storage device, but there are essential differences in structure.Gas wall hanging stove has a powerful family central heating function, can meet the heating demand of multi-room, in addition, can also take into account the hot water bath function, gas wall hanging stove heating function is affected by the local climate conditions and building insulation conditions.
Function description of some major accessories:The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.The function of the gas valve is to ensure the normal combustion of the boiler. In a certain range of gas pressure, make the boiler stable combustion and can automatically adjust the gas supply according to the requirements of the boiler heat output, in order to realize the automatic shutdown of the boiler and gas proportion regulation.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors.
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Qingdao Hiounce HVAC Equipment Co., Ltd. is located in the beautiful coast al city of Qingdao, is a gas heating furnace,condensing gas boiler, gas module furnace as the leading, set design, research and development, production, sales in one of the high-tech enterprises.
The company has more than 100 employees, the company covers an area of 13600 square meters, plant area of 7500 square meters, all kinds of production and processing equipment more than 100 sets. The company has an annual output of 120,0 00 sets of wall mounted furnace and modern production line and equipped with advanced testing equipment. According to the high standard of the industry, the company built the research and development laboratory, the life laboratory, the incoming material laboratory and the finished product laboratory.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
